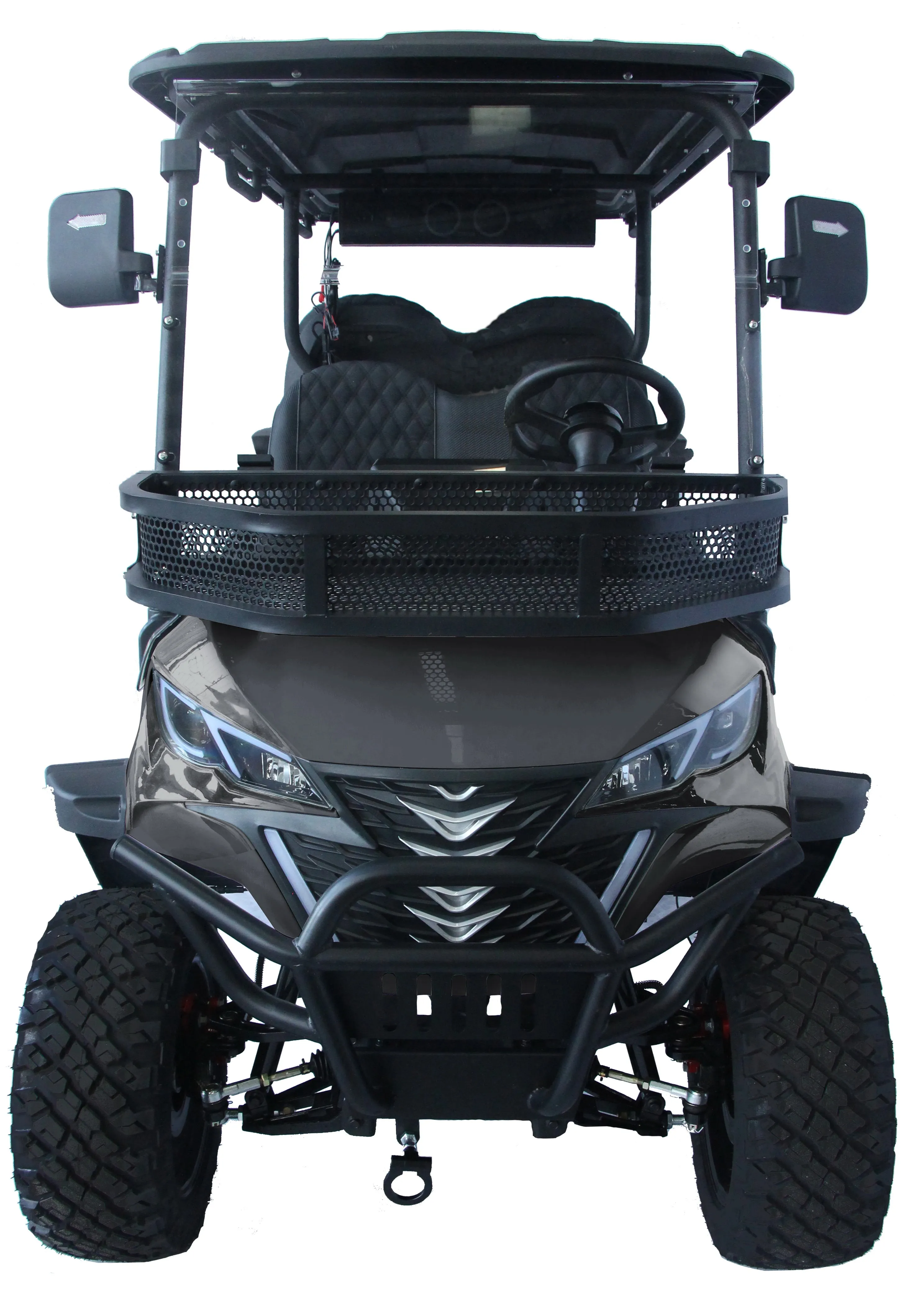

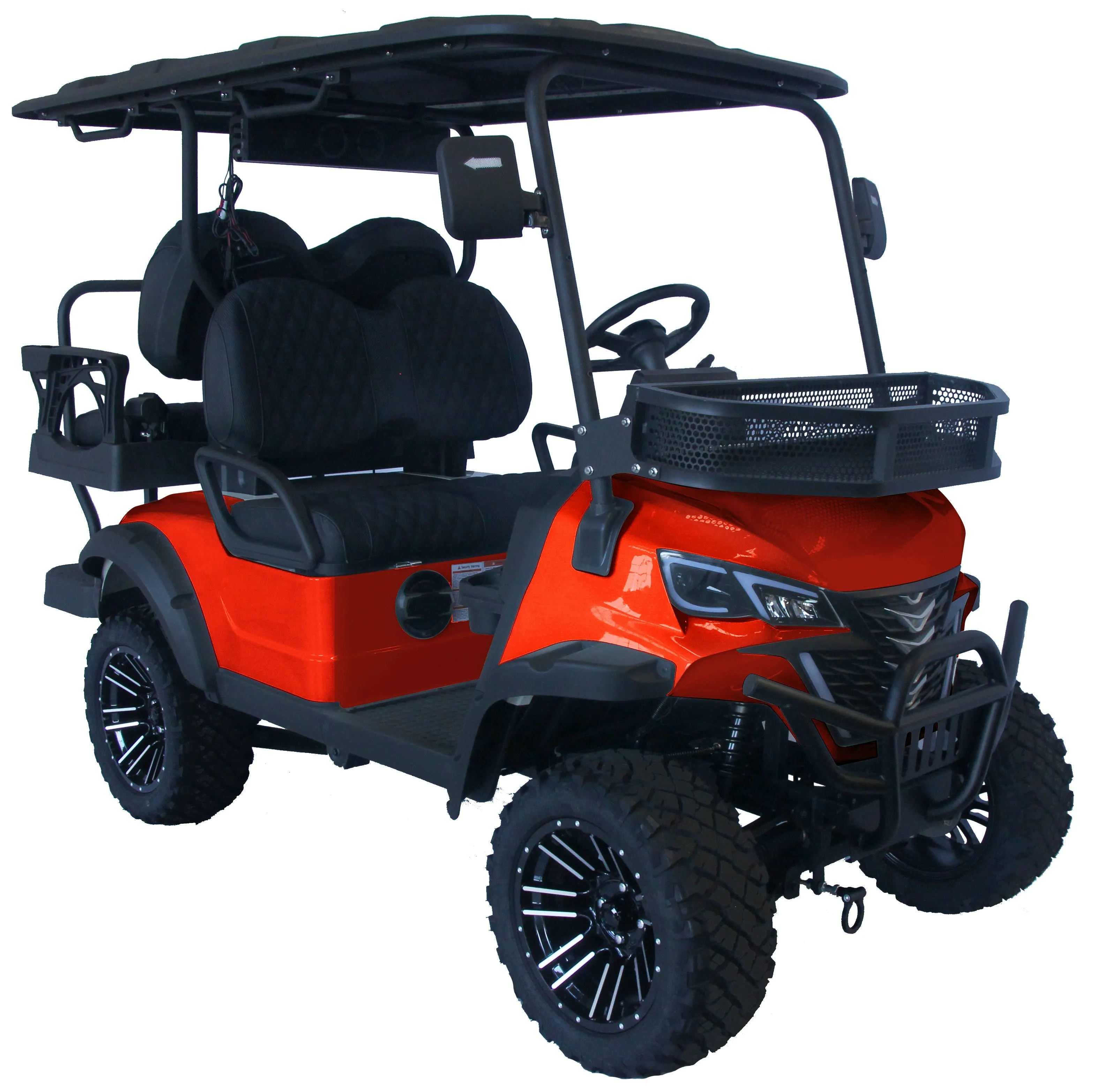

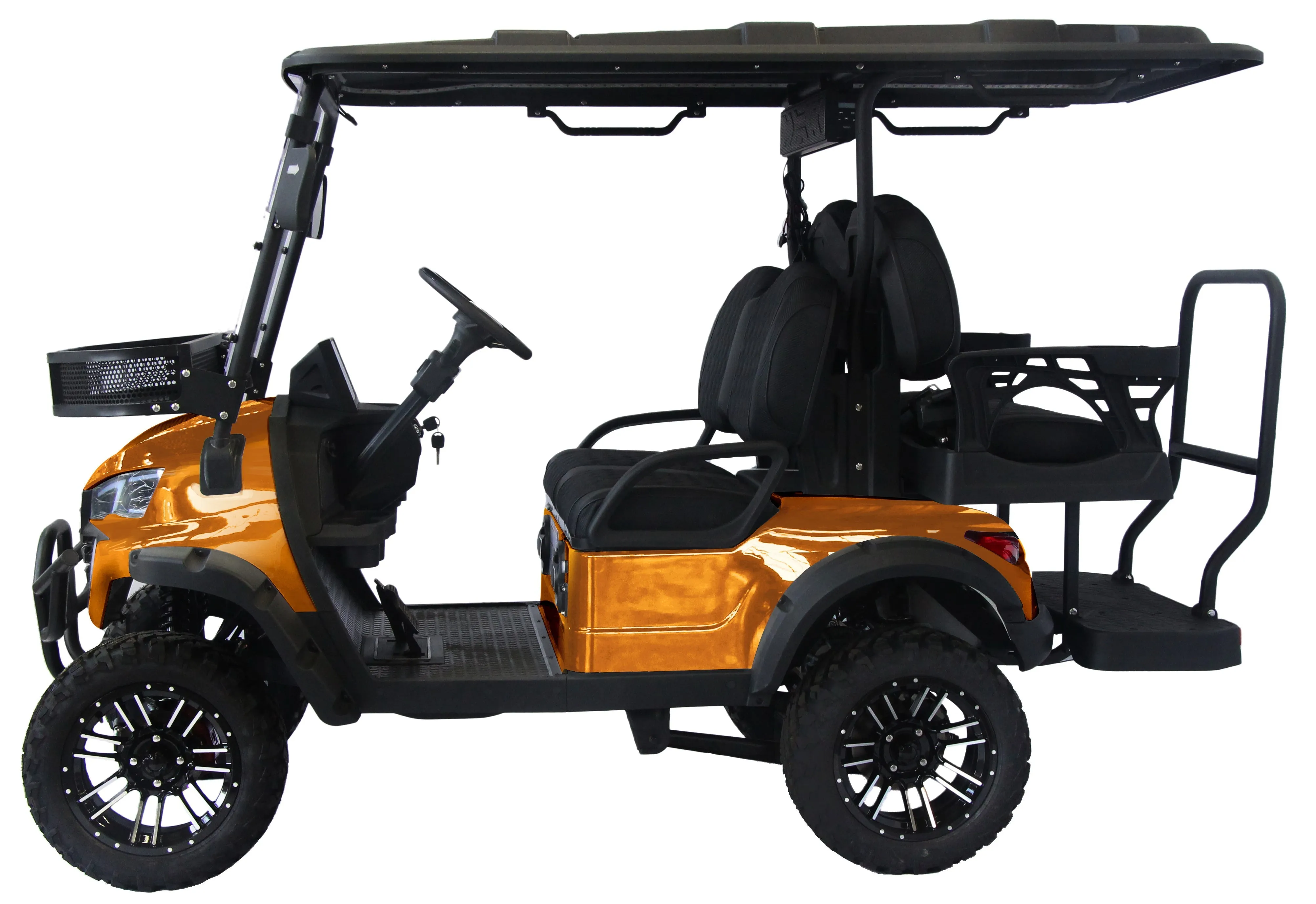

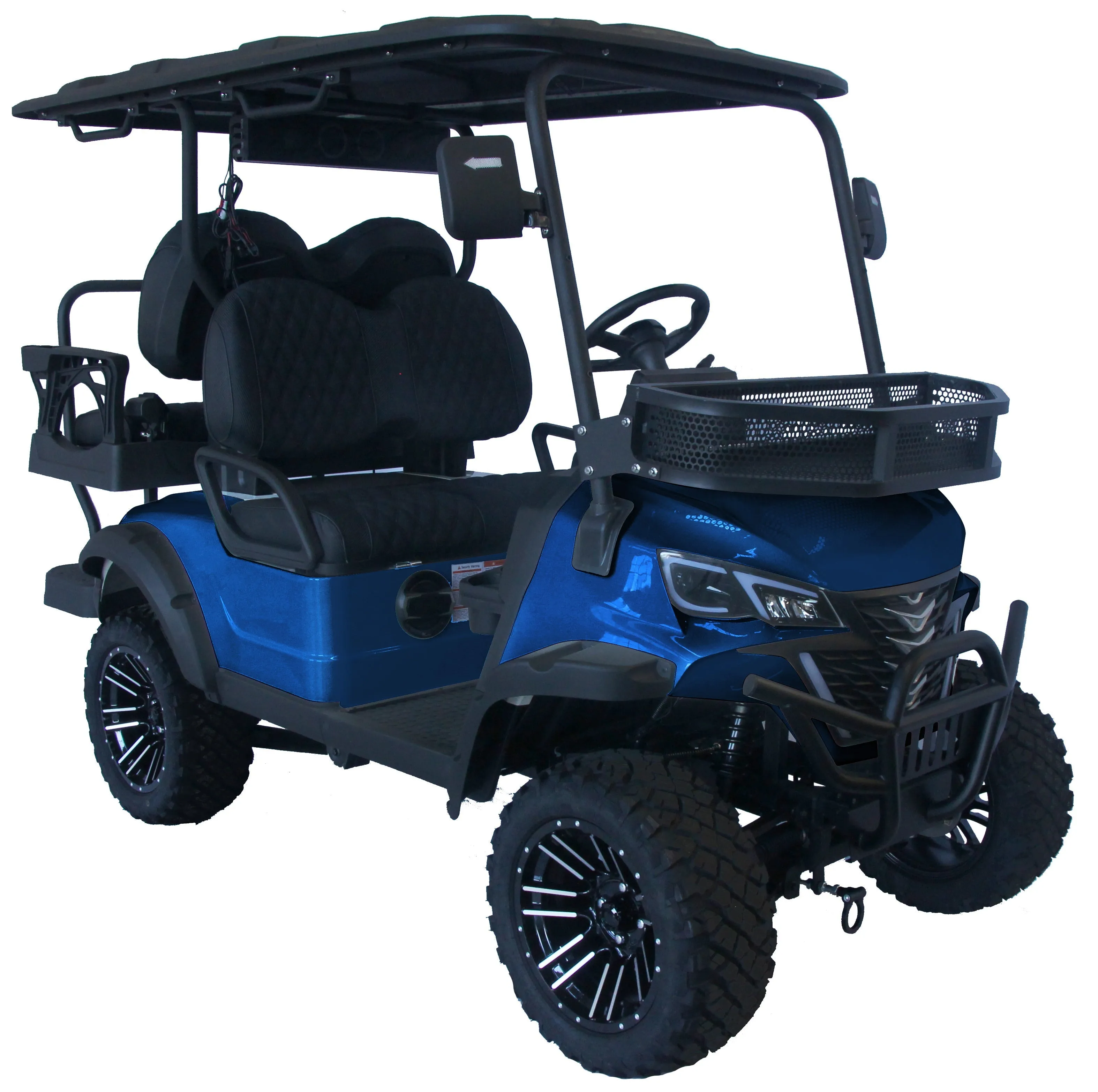

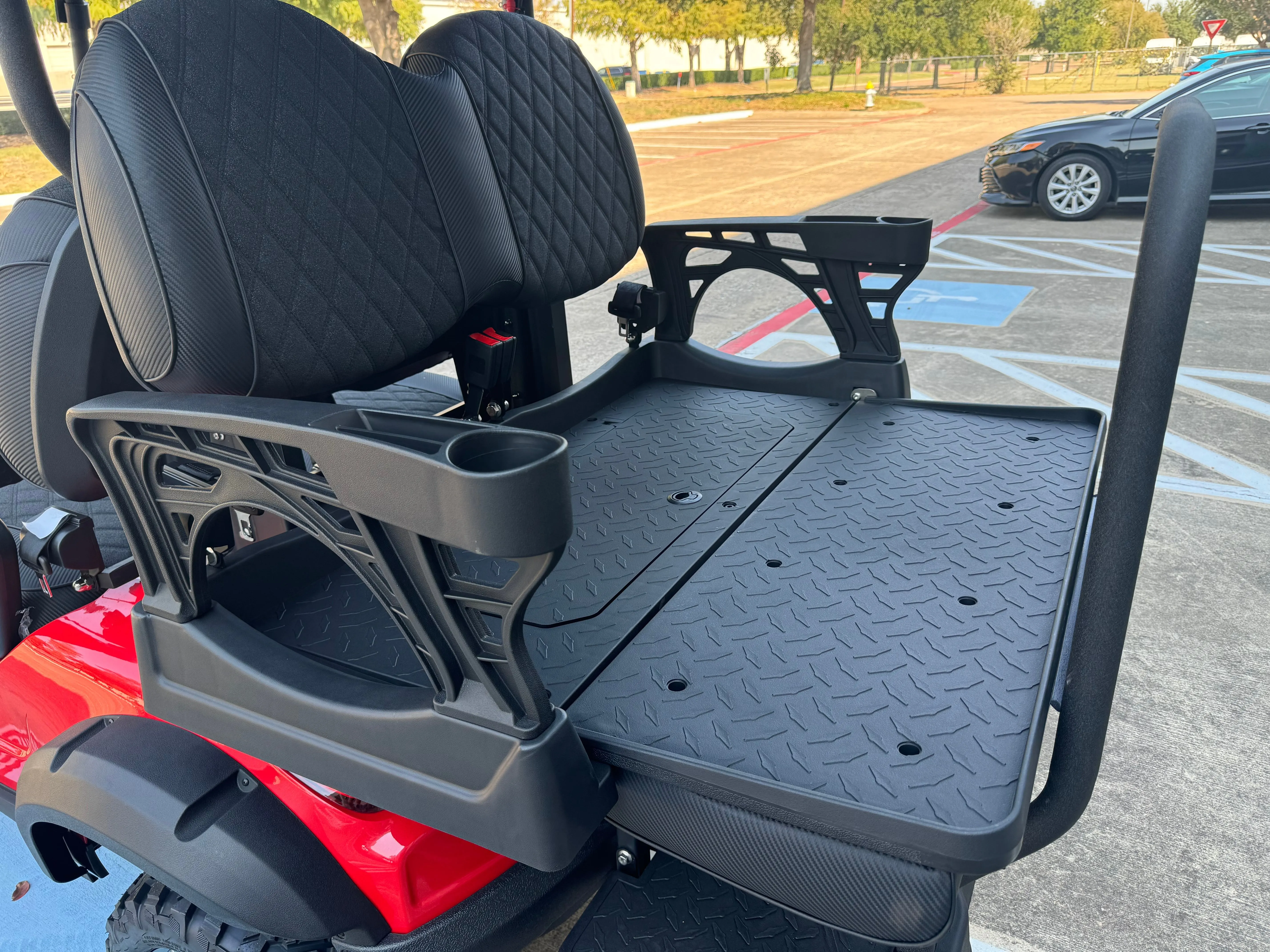

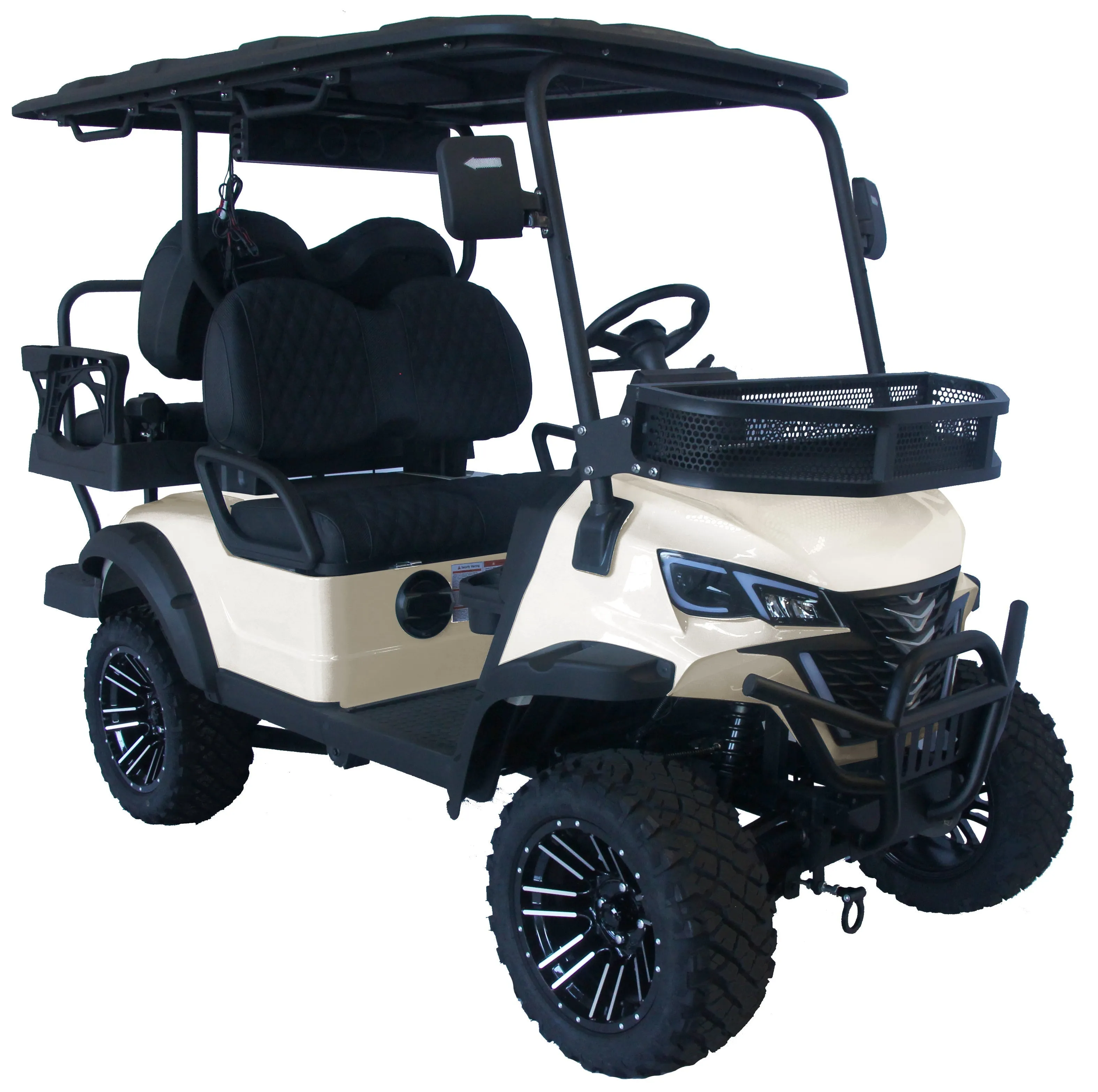

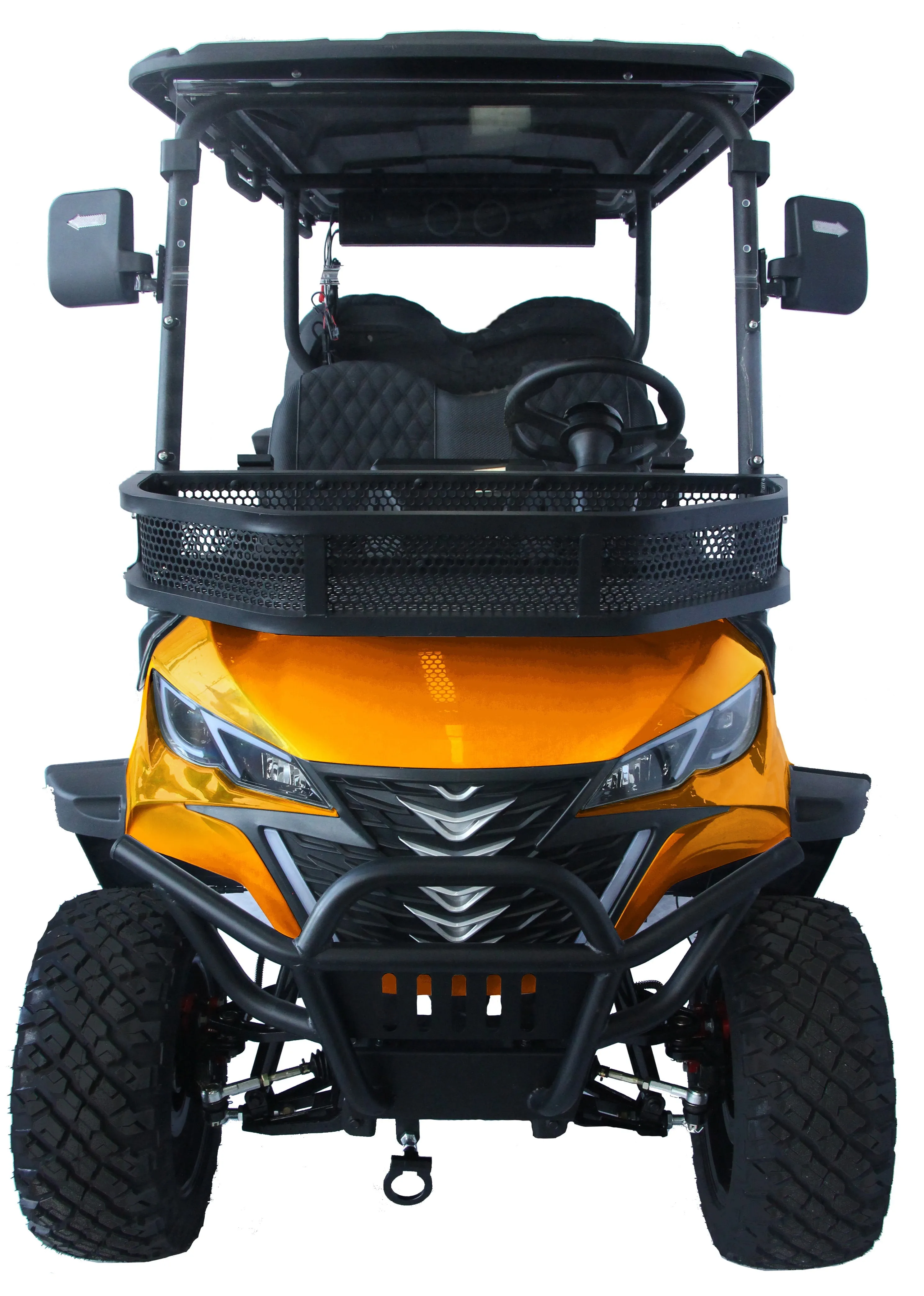

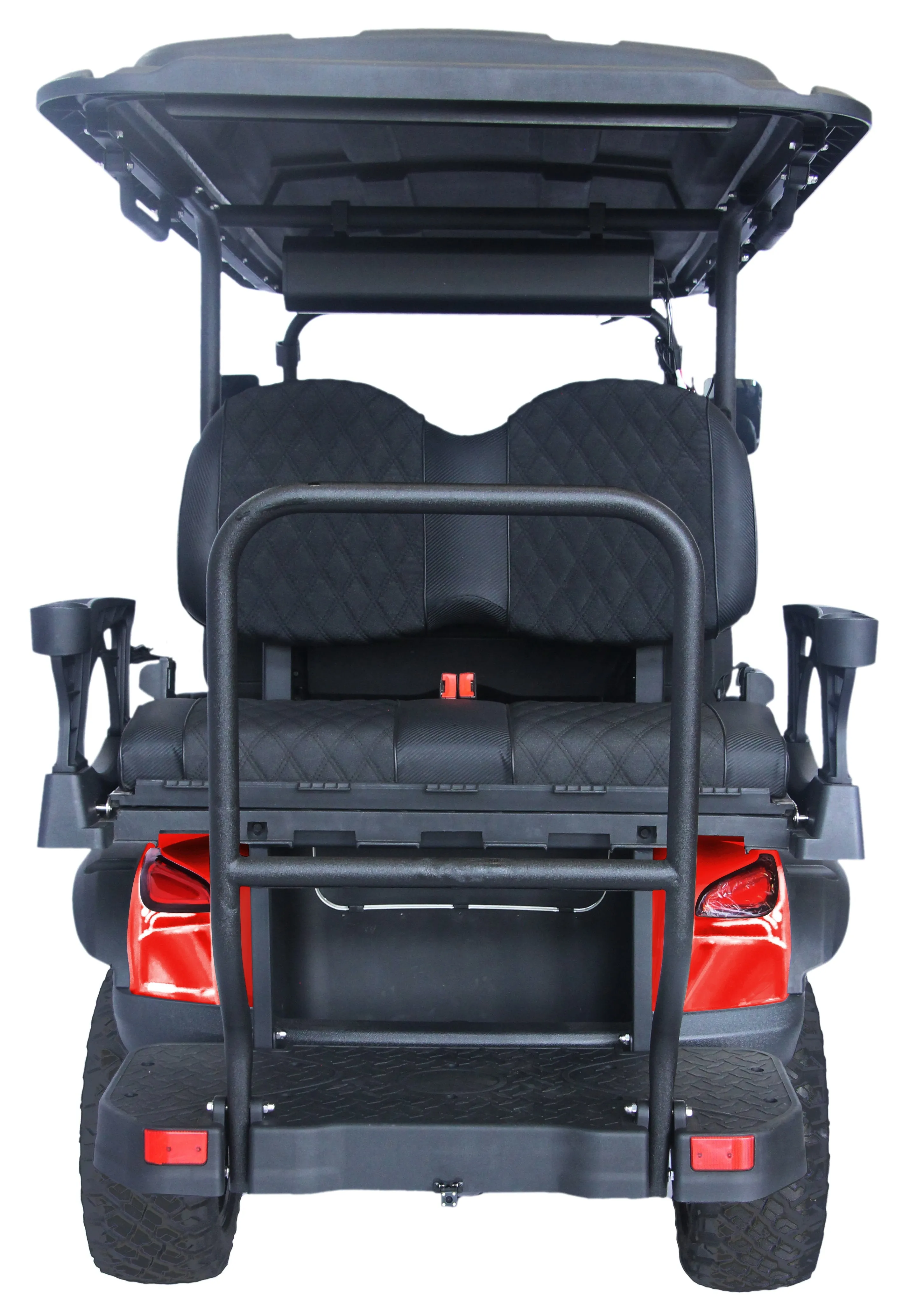

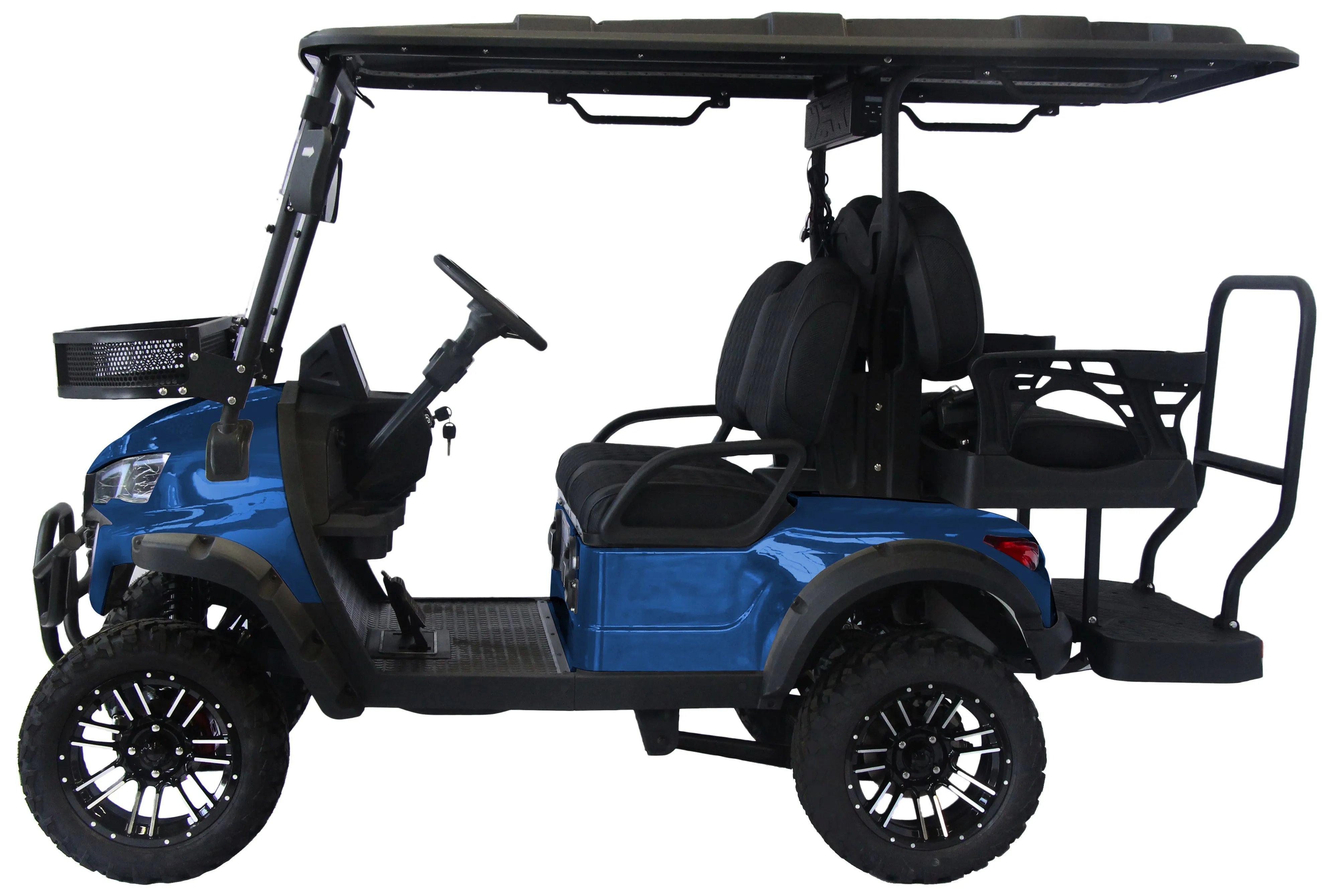

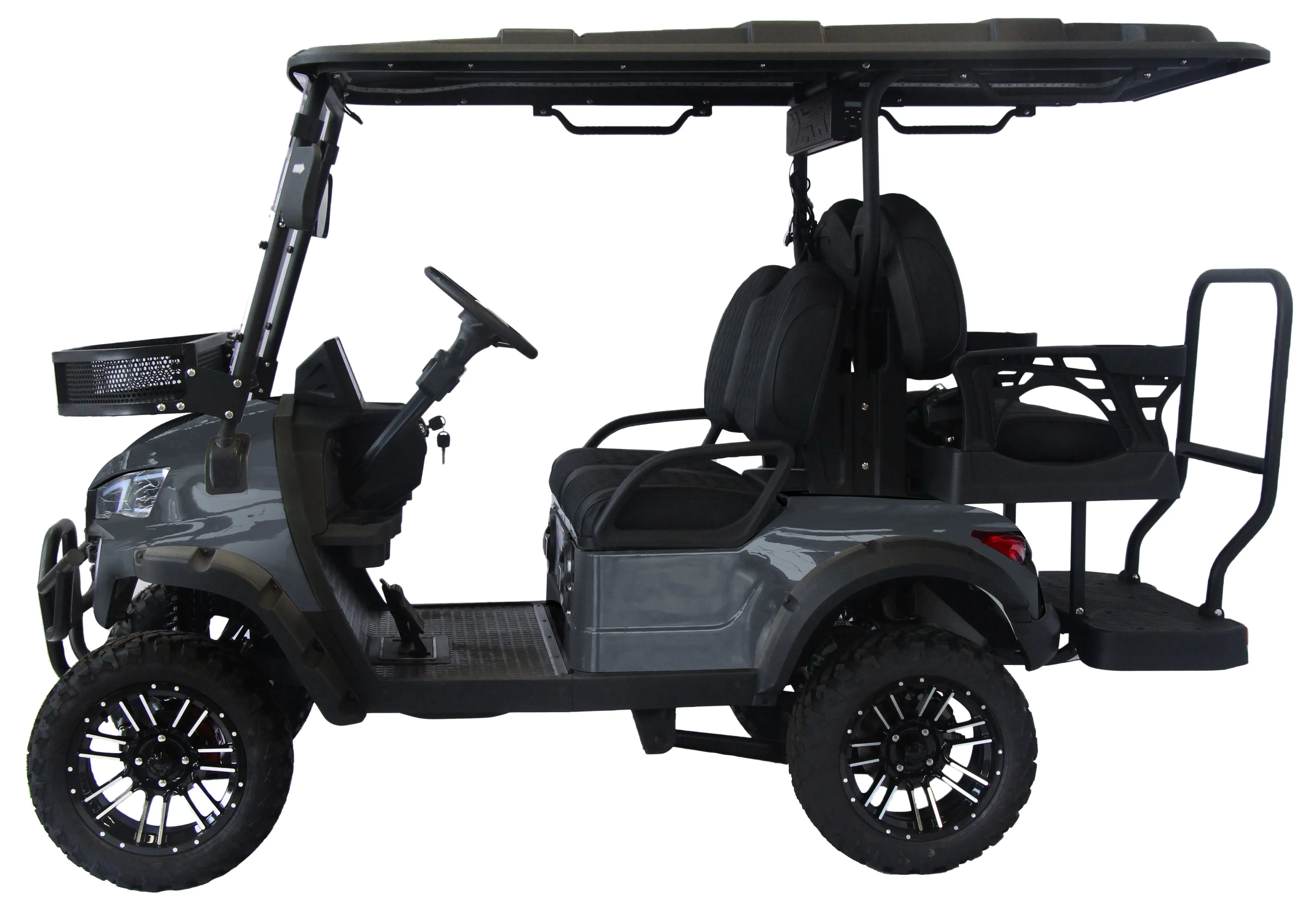

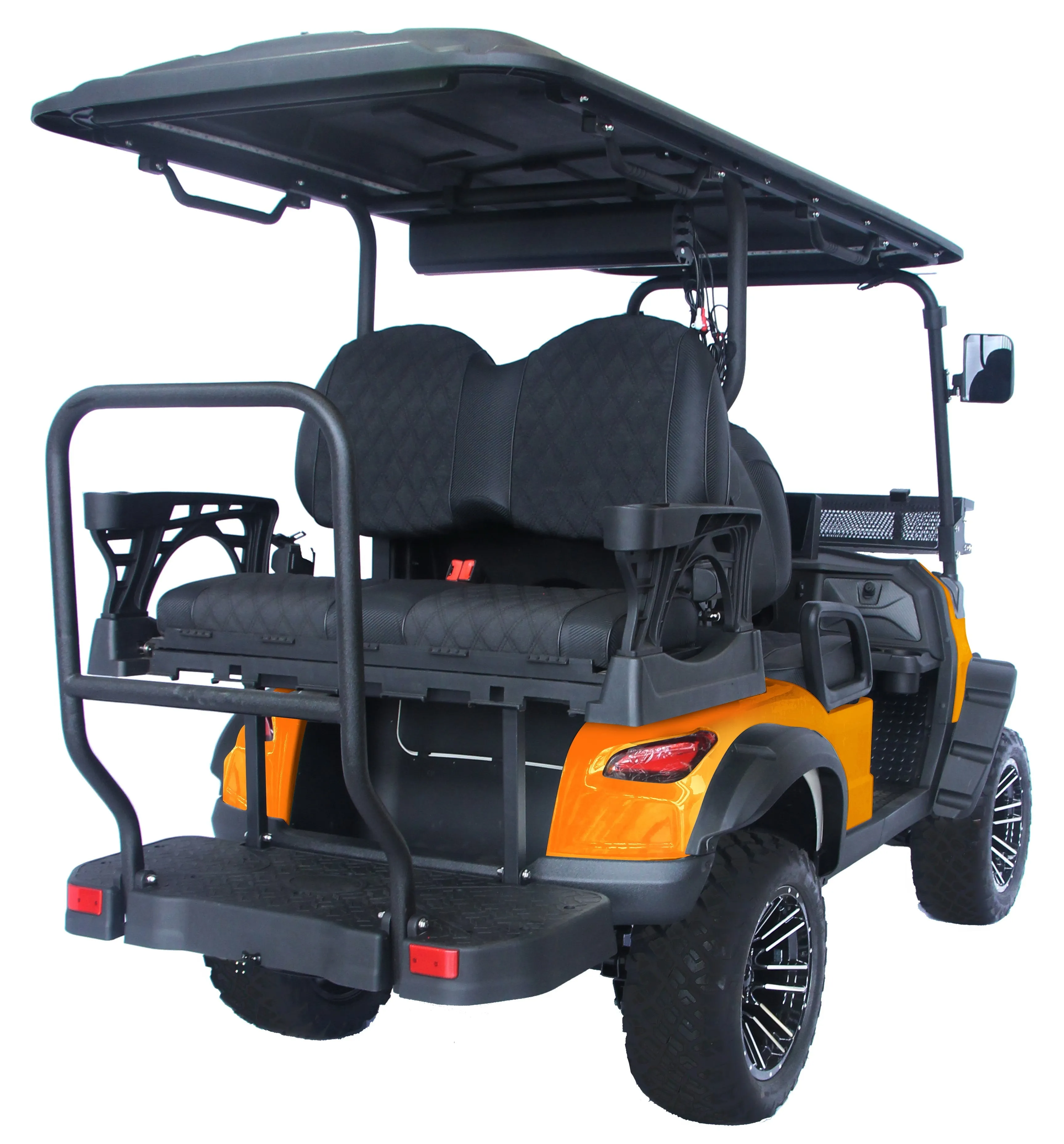

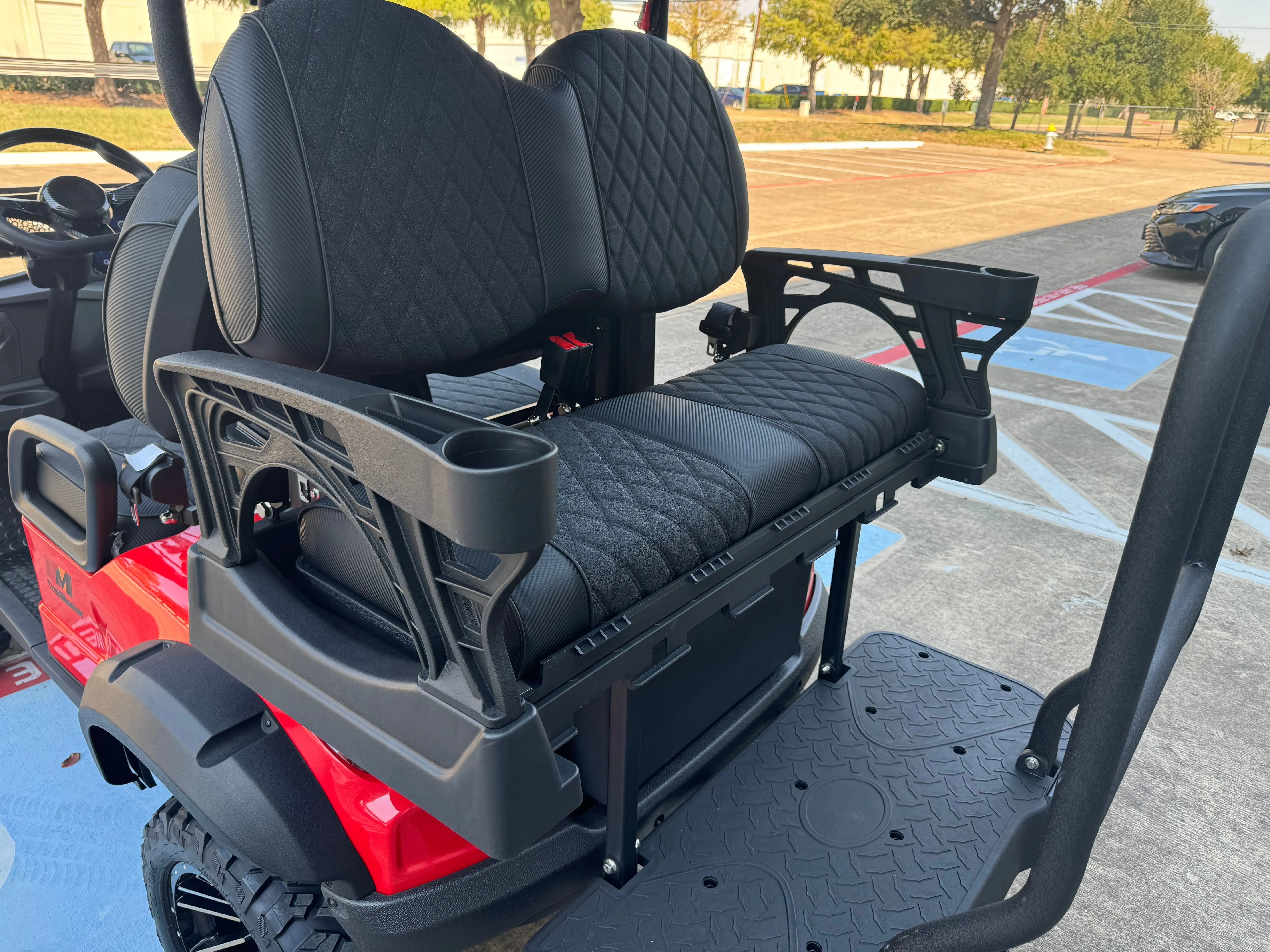

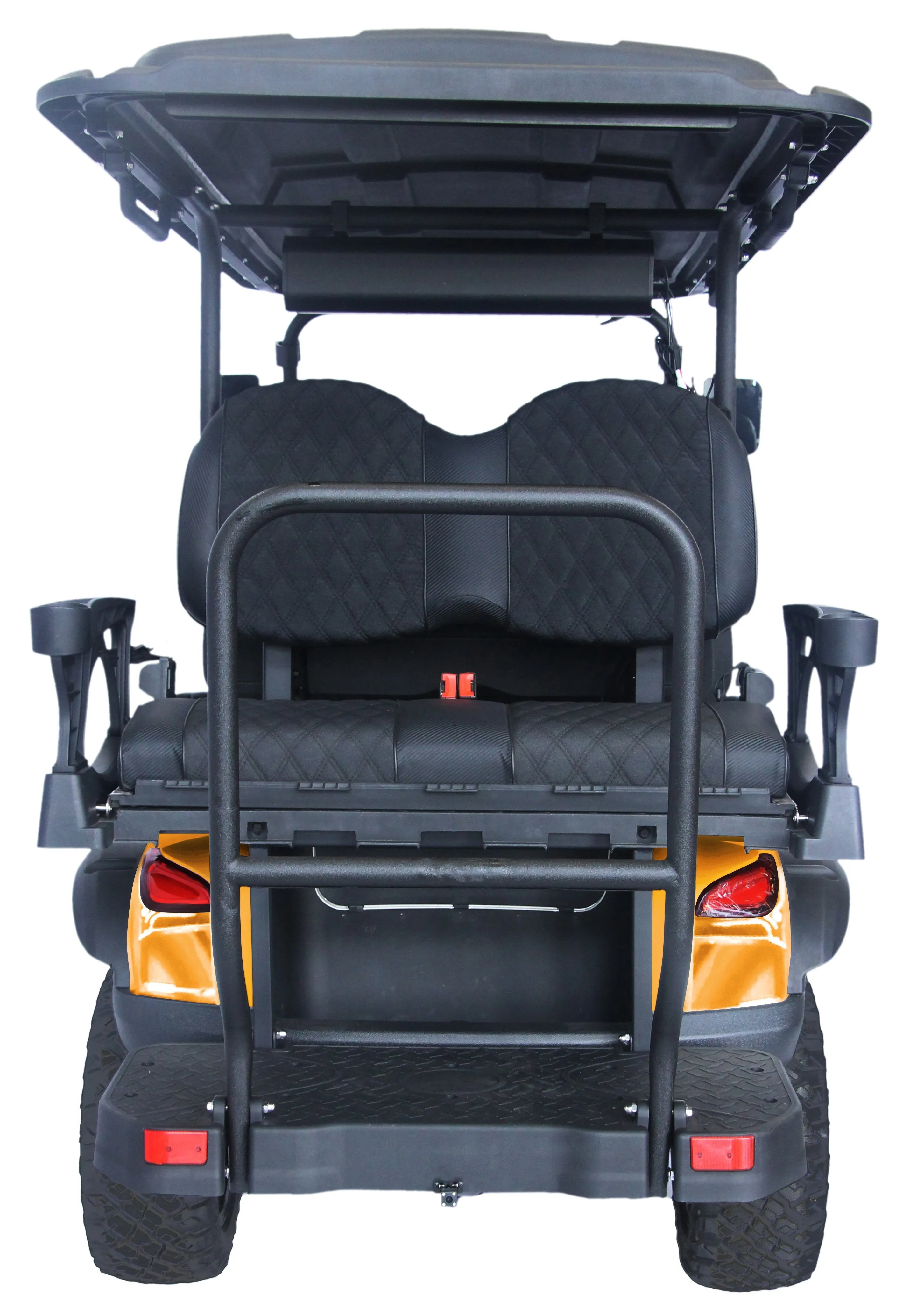

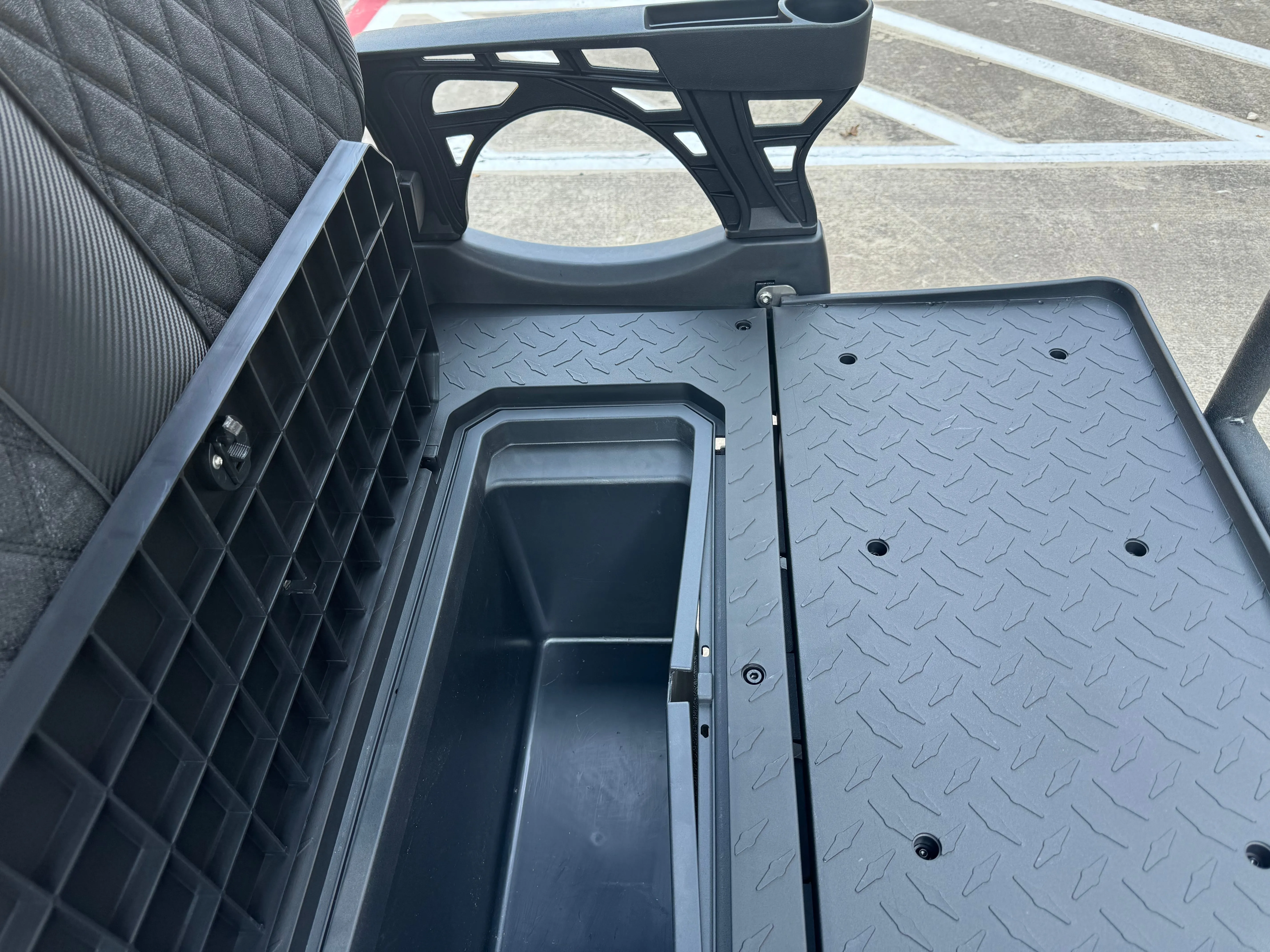

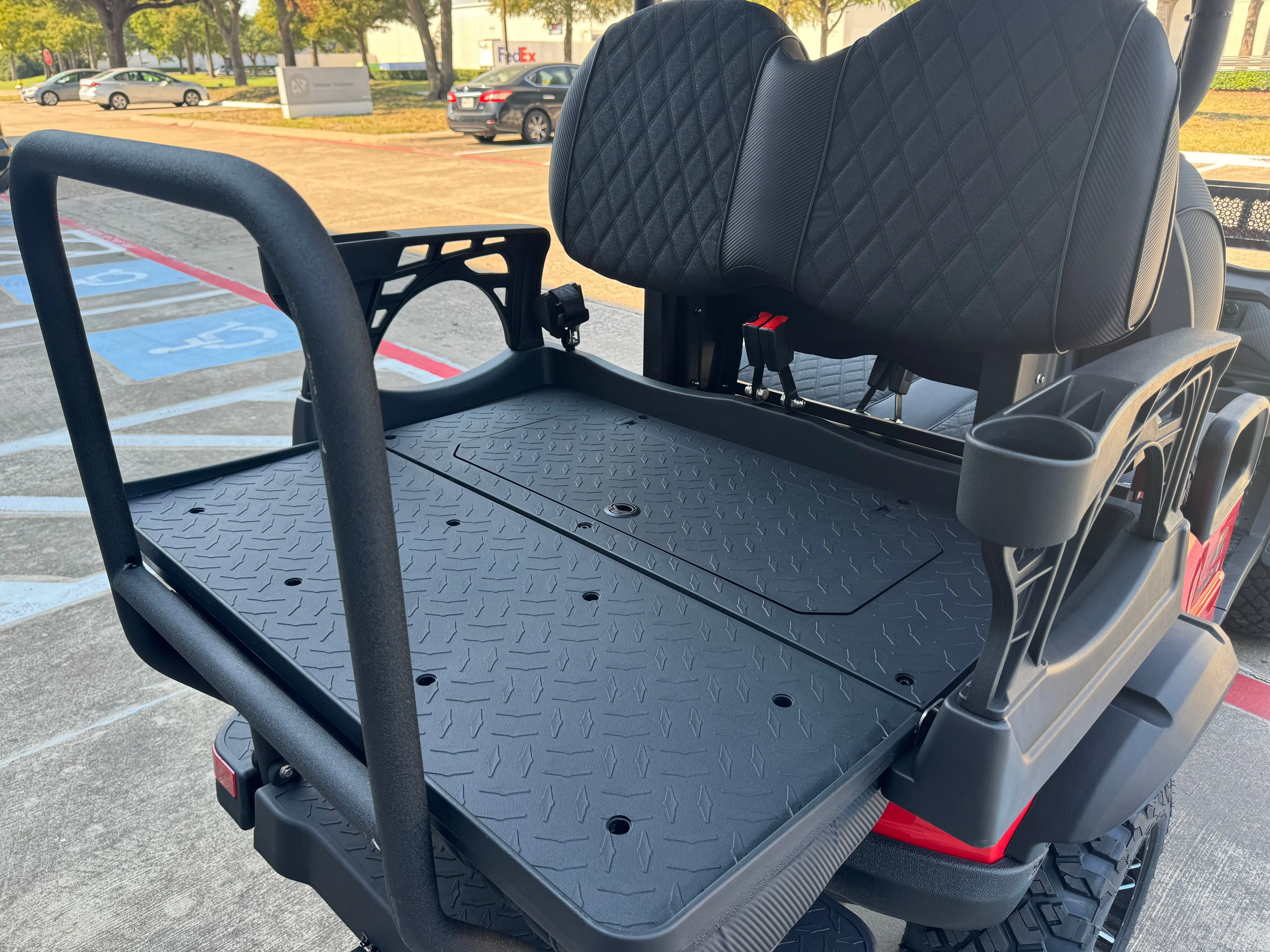

The TrailMaster TBM X4 is an electric golf cart with a 48v system centered around a 5kw 105ah battery. At full charge it is capable of an average 48-mile range at an average of 20mph for between 2 to 3hours depending on terrain. With a foldable windshield, carbon fiber steering wheel, 22” aluminum rims and led head lights and blinkers this is machine turns heads. It has a high strength carbon steel frame with comfortable cushion seats front and rear. The rear facing seat folds down to have a place to carry items as it lays completely flat. It also has a cooler under neath the rear seat as to hold whatever cold drinks you need. It has a standard 10” LED touch screen which comes standard with Apple Car Play and Android auto to navigate anywhere. The touch screen also has a radio you can play across the 3-speaker system: 2 down low in front of the seat and one up high behind your head near the roof. The hard roof is ringed on the inside with led lights that can be switched on and off on the dash. With a ground clearance of 13” this lifted cart can take you most anywhere.
Features
• Aluminum Rims

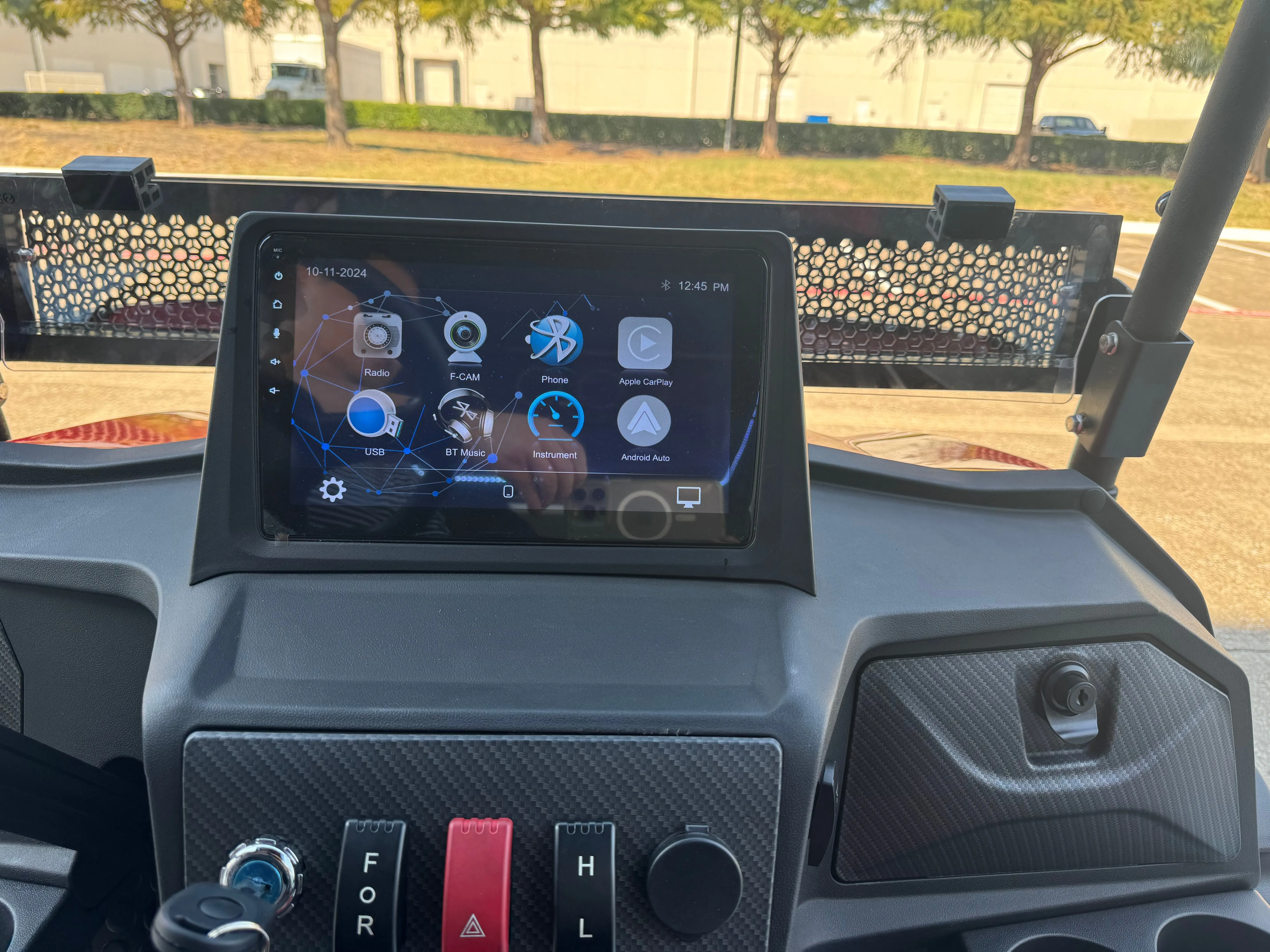

• 10” LED Touch Screen
• Apple Car Play and Android Auto

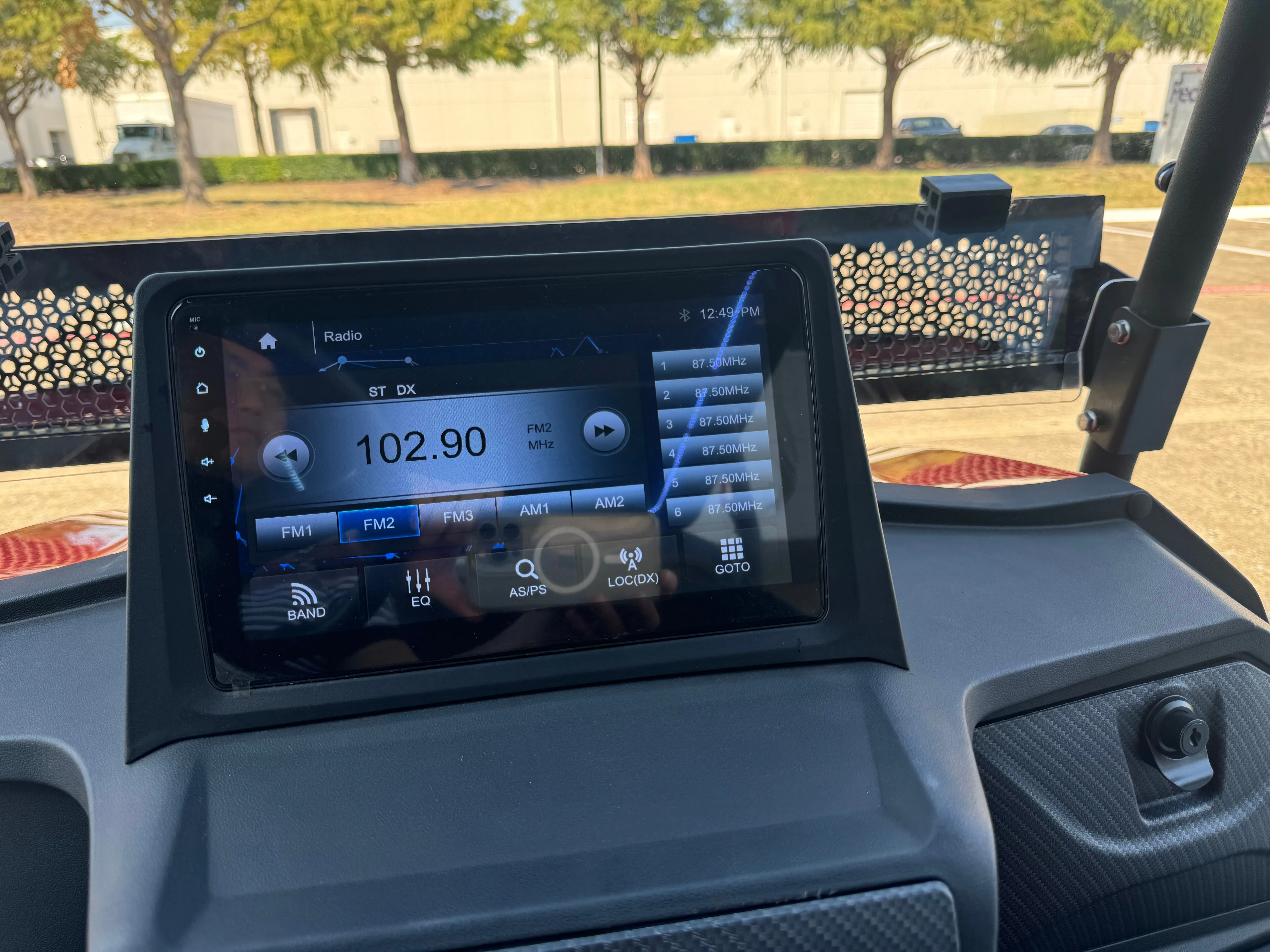

• FM Radio and 3 speakers
• LED Headlights

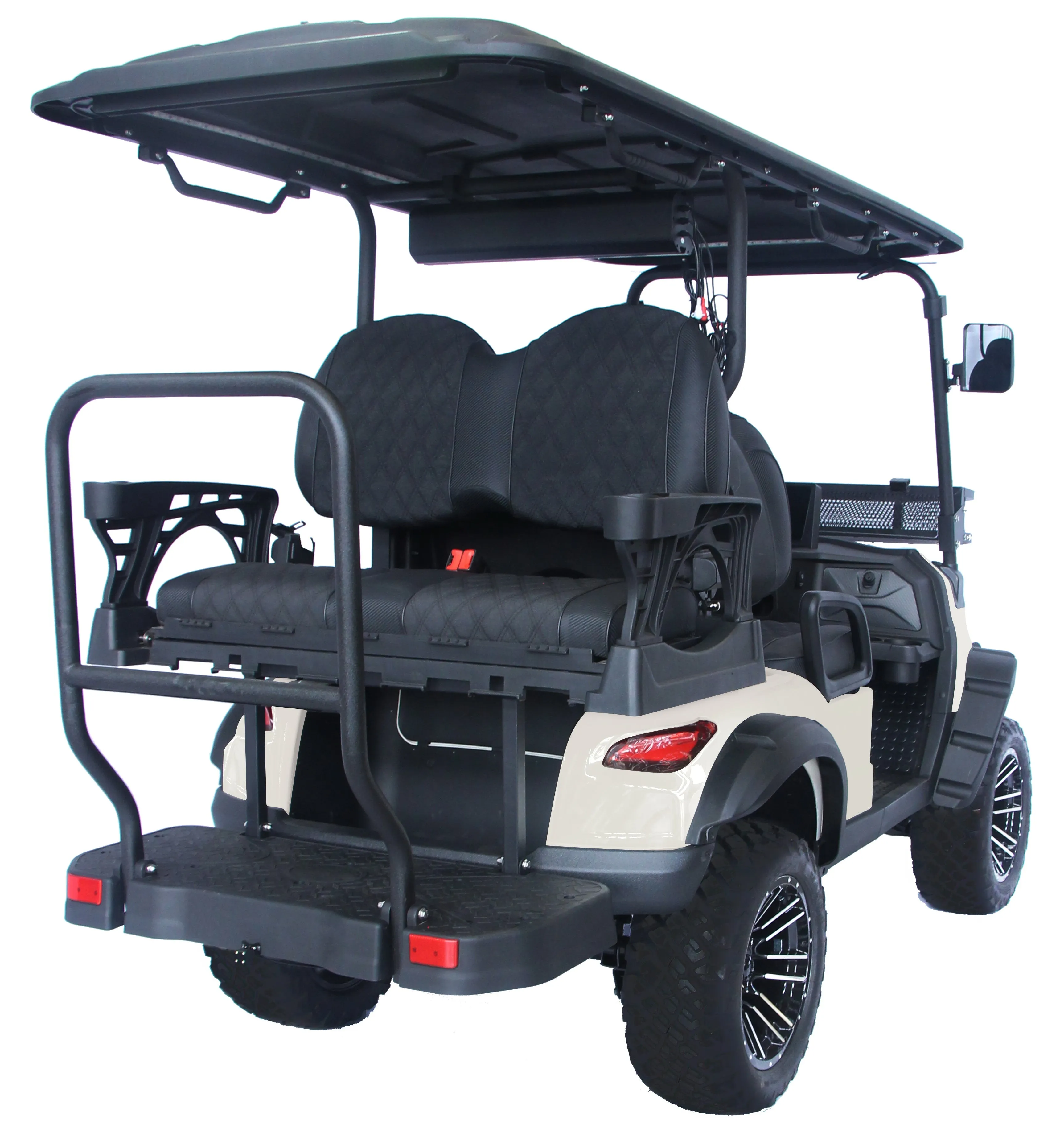

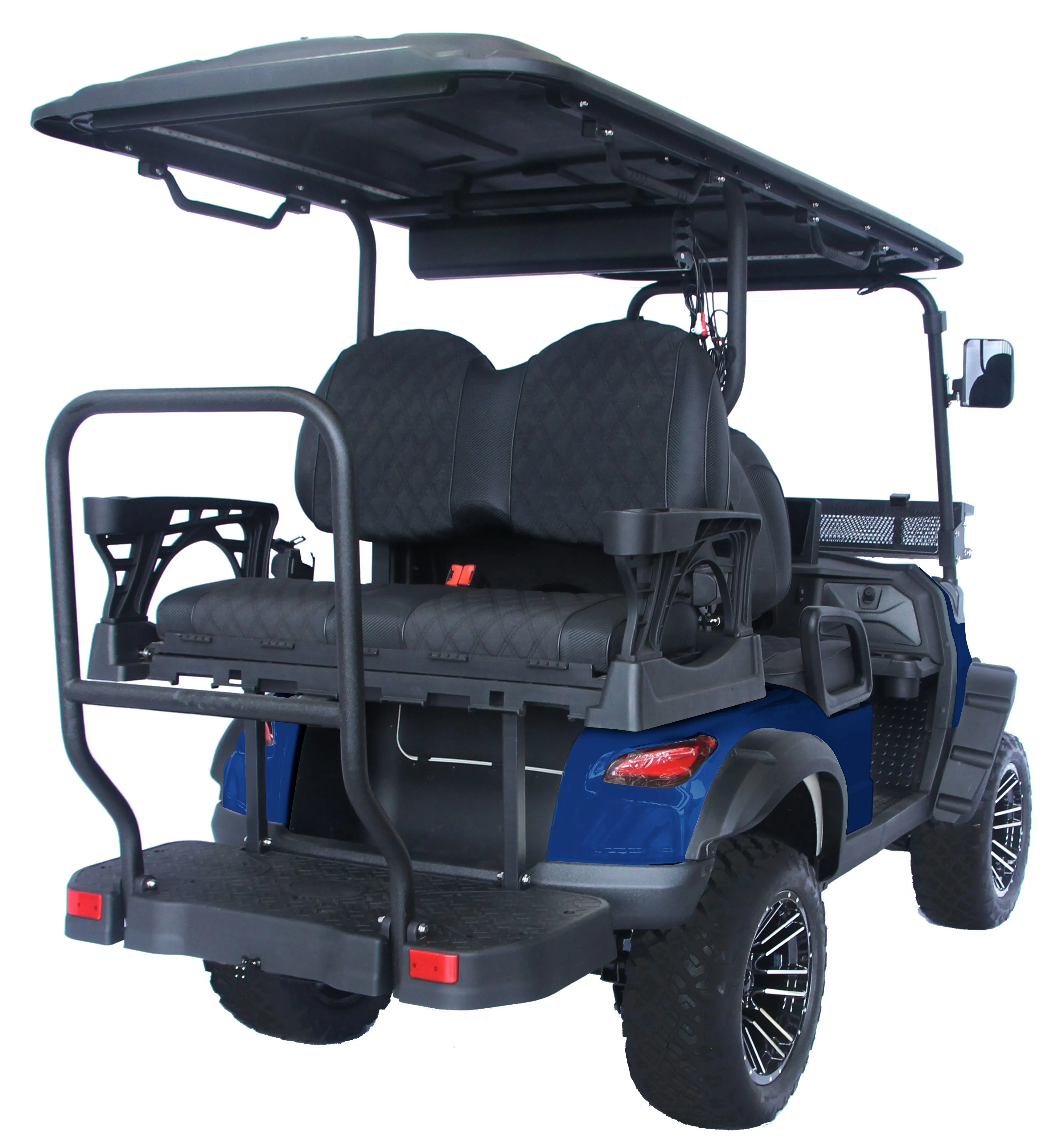

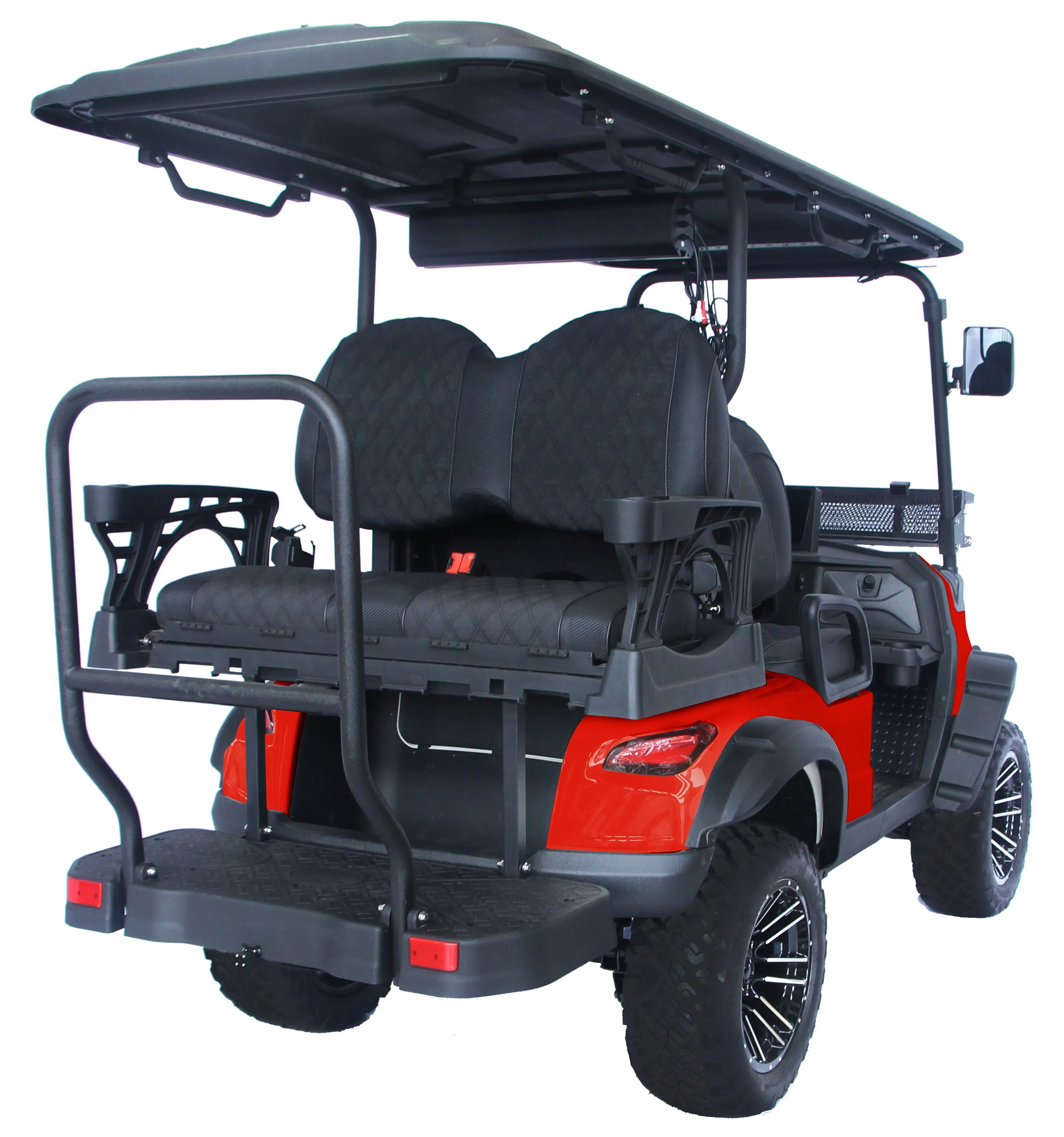

• Rear Facing Seat
• 48V / 5kw battery
• Seat Belts
• Foldable windshield

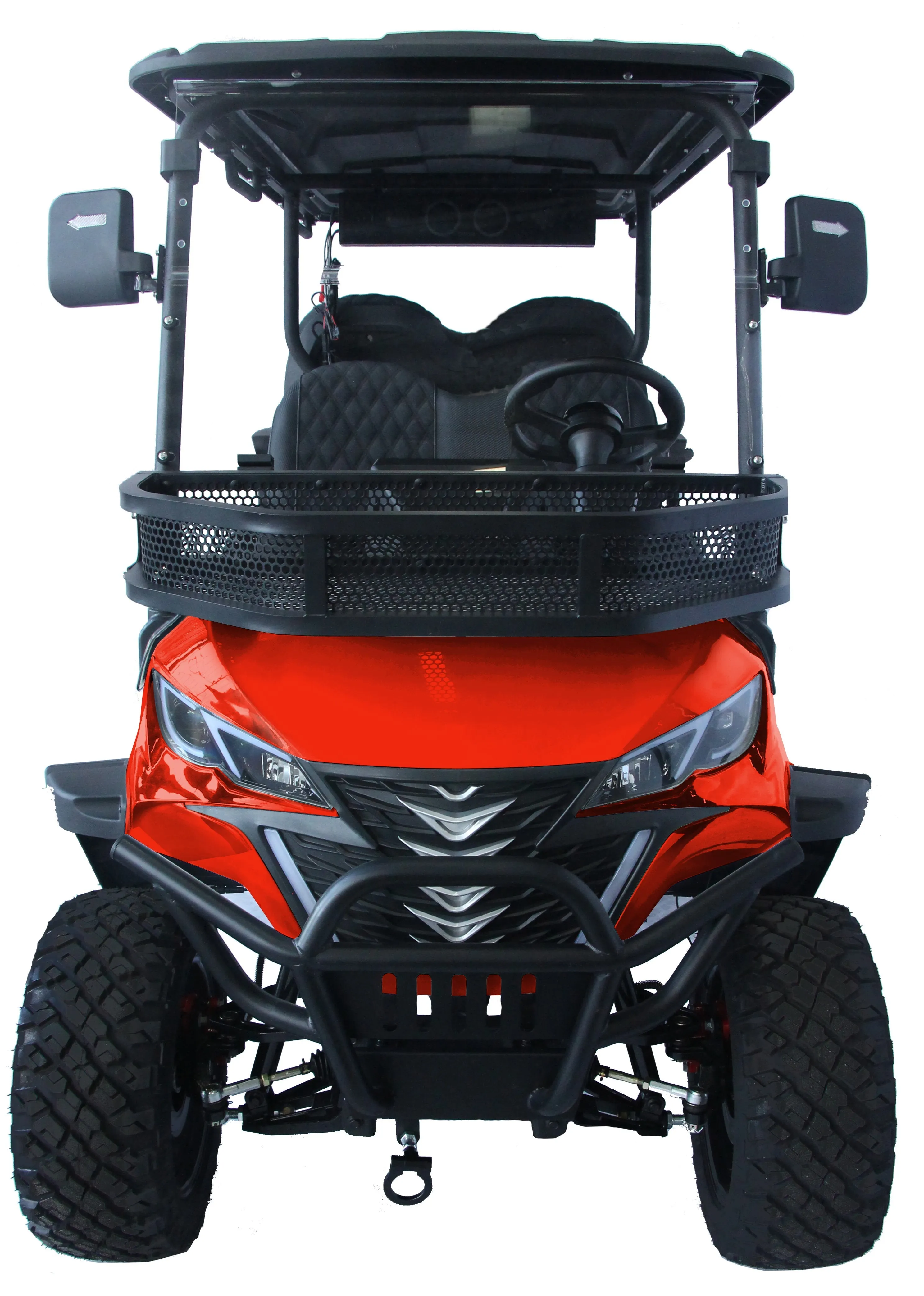

• Aluminum Front cargo rack / basket
• Front bumper
• Roof and underbody led ambiance lights with remote control

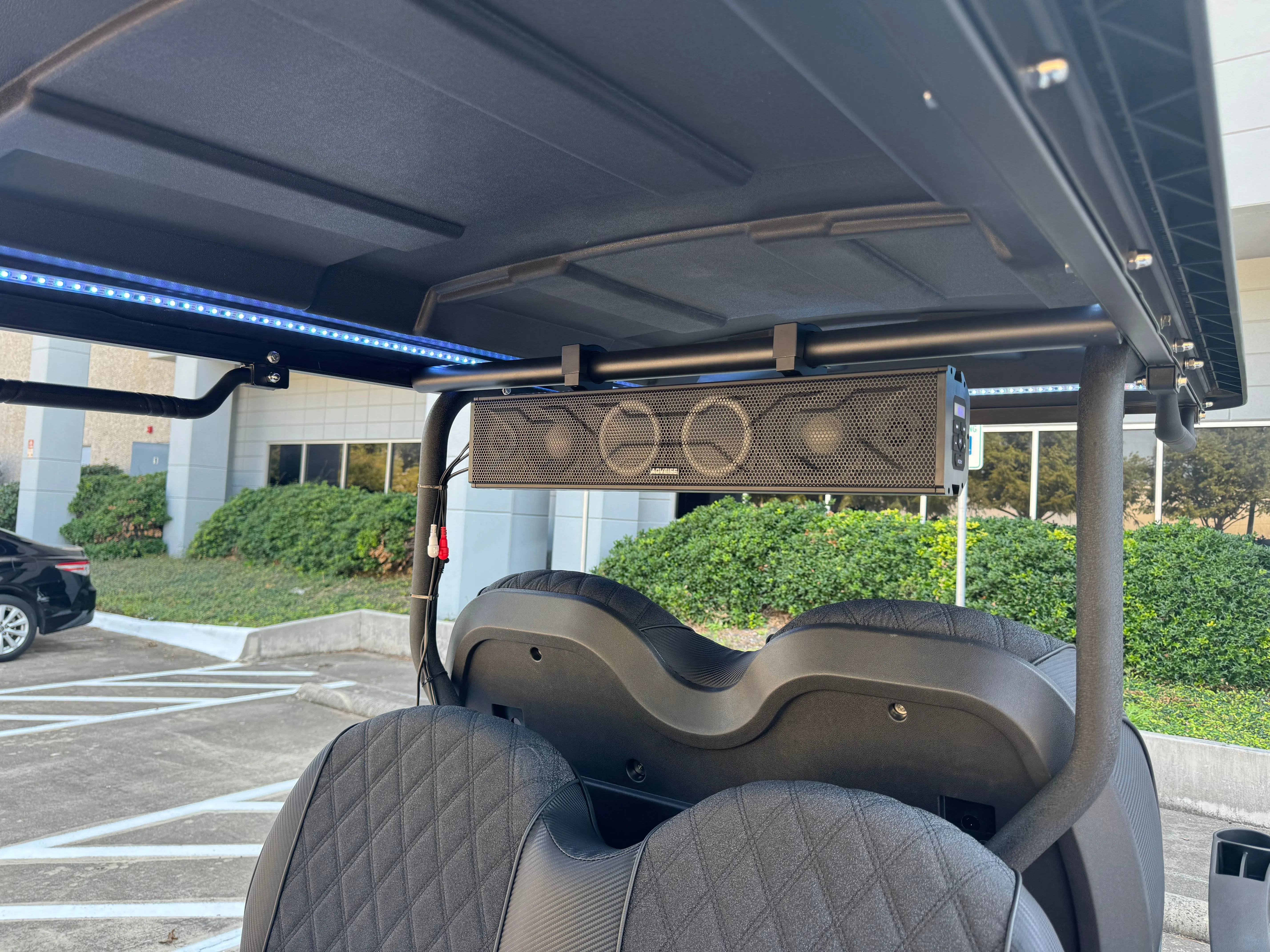

• Sound bar speaker
• Side mirrors with turning signal

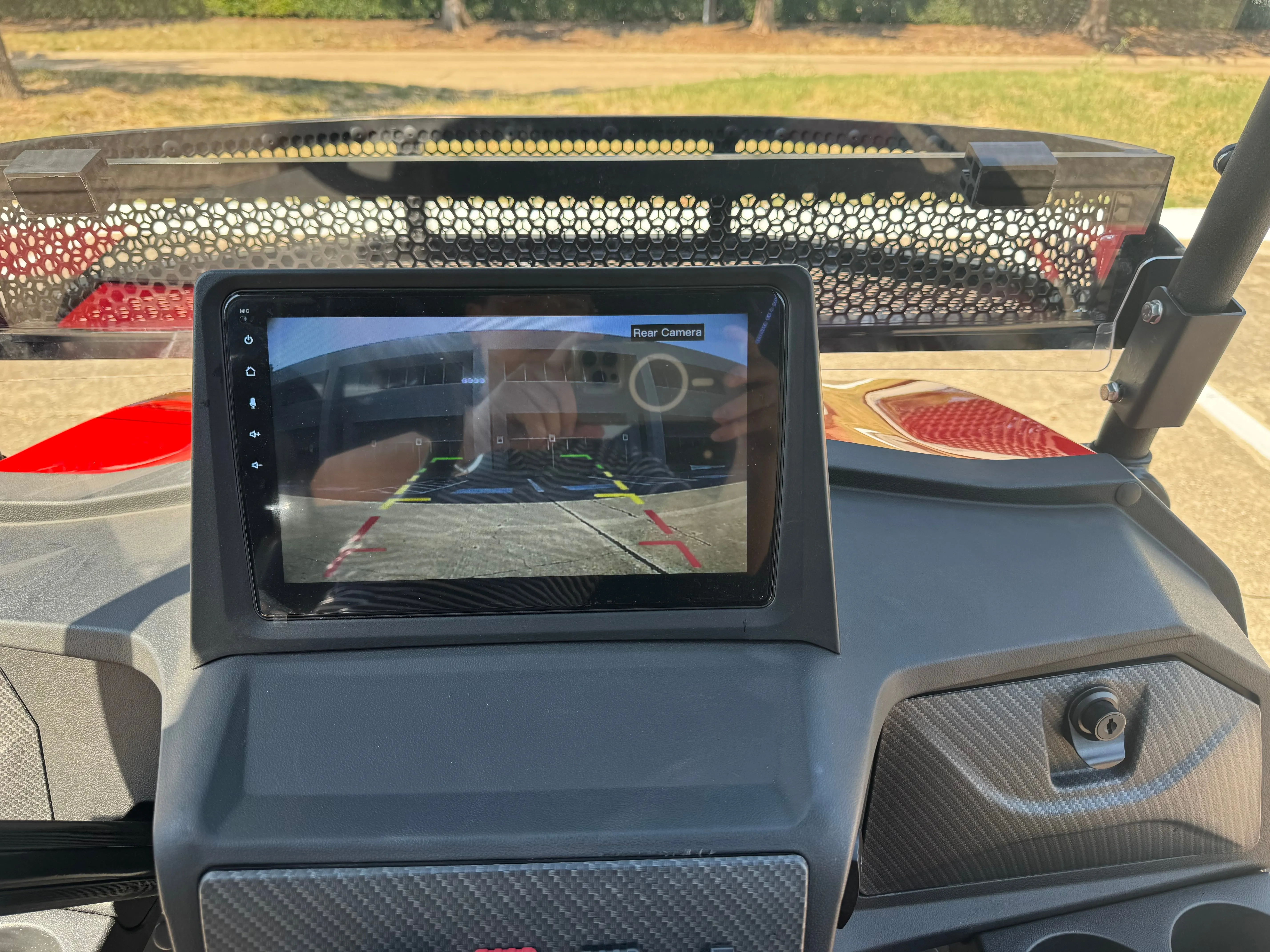

• Reverse camera
• Back storage basket
• Integrated storage under Rear Seat
• Artificial leather seat cushion and backrest
• USB-A and USB-C output
• Cup holder in both front and back
• Front trailer hook
• Colors: Red, Pearl Blue, Grey, White, Orange, Chameleon
Details
• Climb ability 20%
• Min turning radius 16 feet
• Power Off Switch On battery & lower right side of rear seat
• Steering Wheel Carb fiber coated
• Tires 22X10-14 Front and rear
• Rims Aluminum
• Body Automotive color baking process with UV protection
• Frame High strength carbon steel integral, phosphating coating, corrosion prevention

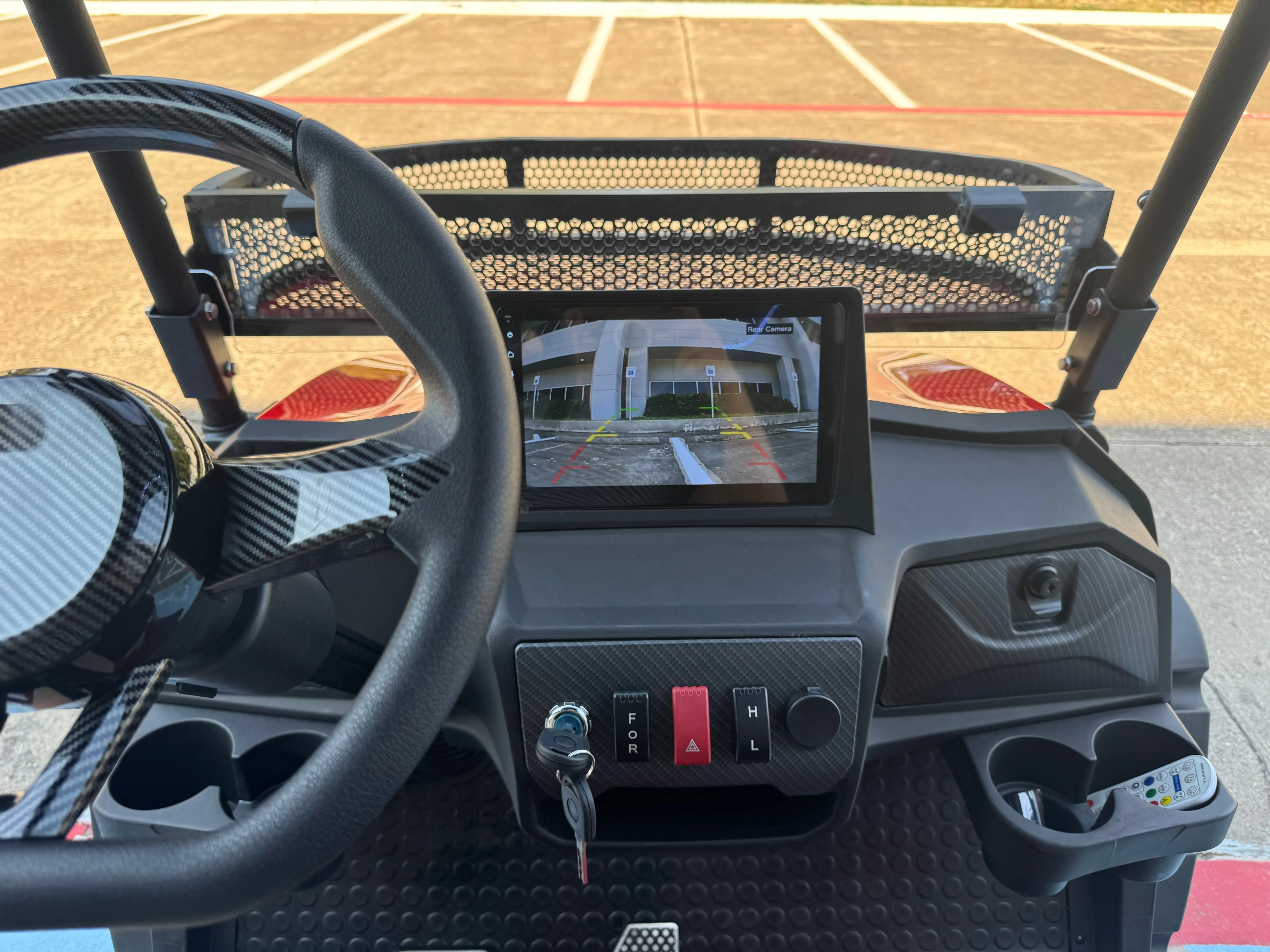

• Instrument 10.1" LED touched screen w/ Android Auto Apple Carplay, Radio, Bluetooth, Reverse image, Odometer, Battery Capacity Display etc.
• Controller Enpower-3818
• Charger Lithium special car charge
• Lighting system and horn LED headlights, turn signal lights, taillights, horn
• Reverse Alarm Yes
Specifications
• L×W×H 114"X47.2"X72.8"
• Wheelbase 67"
• Ground clearance 13"
• Net weight 900 lbs.
• Loading capacity 770lbs; 4 people
• Brake Type (front/rear) Foot Pedal Four Wheel Hydraulic Disc Brake
• Control Mode Steering Wheel
• Suspension F/R Double A arm Independent Suspension/Rear Towing Arm
• Power 5KW
• Transmission ratio 12:1
• Vehicle voltage 48V
• Battery capacity 105AH
• Max Speed H: 20 m/h; L: 12 m/h
• Mileage at full charge 48 Mile
Electrical System

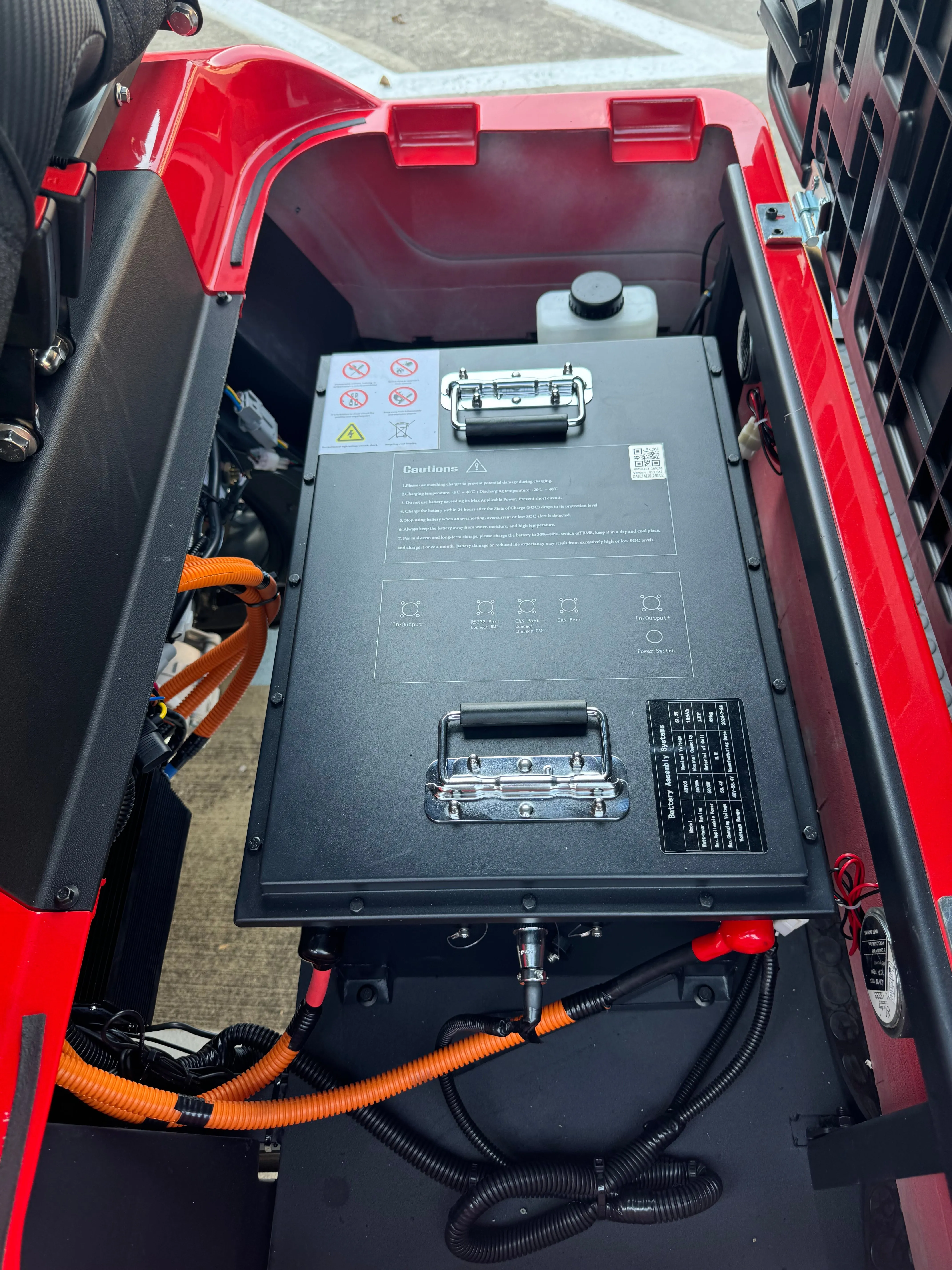

• Battery 48v105AH Lithium Iron Phosphate battery
• Motor 6.3 KW Three-phase asynchronous AC motors
• Electromagnetic braking With Electromagnetic braking, Manual release mounted on the motor
