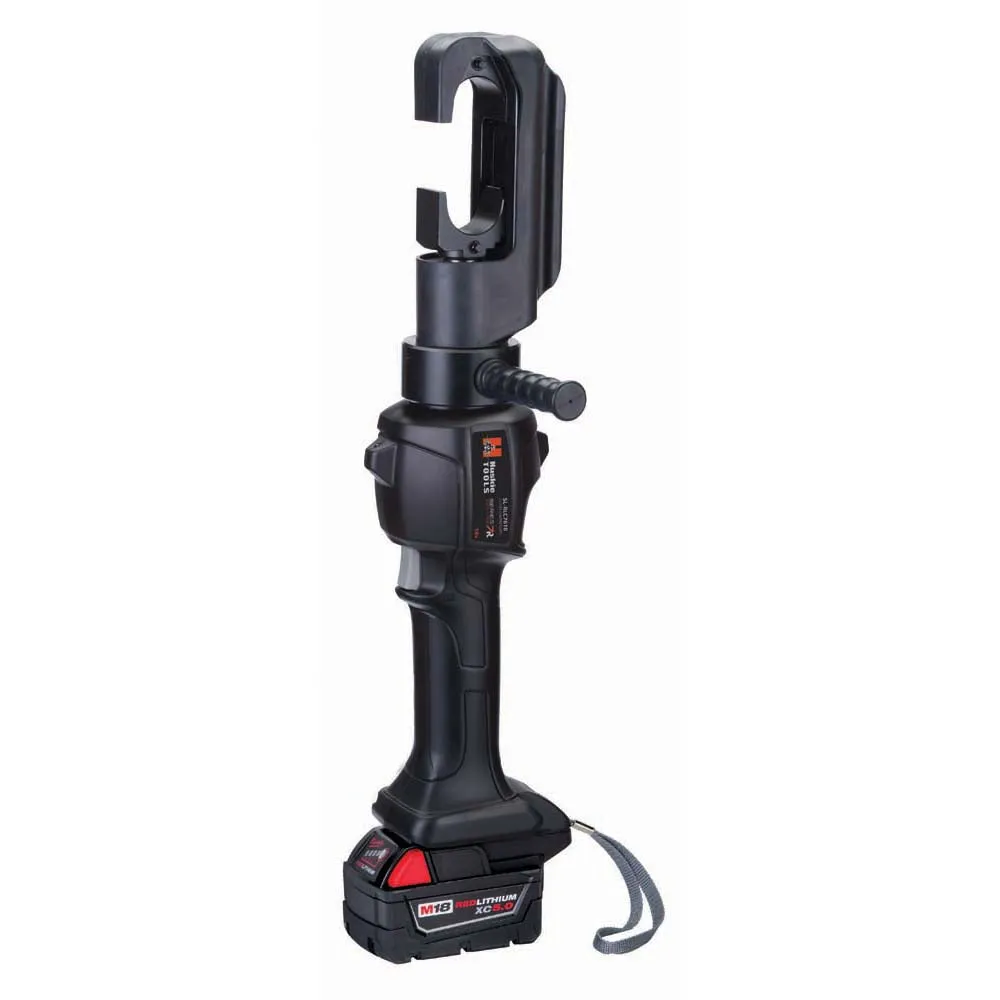

Kit Includes: 15 Ton Compression Tool, (1) MILWAUKEE REDLITHIUM™ 5.0Ah, 120V A/C or 12V D/C Charger, Tool Bag.
Tool Only option includes: 1x Compression Tool & Tool Bag. (excludes battery / charger).
Product usually ships in 7-14 days.
Key Features:
- Protective rubber boot on “C” head helps prevent accidental contact with energized circuits.
- Accepts all “P” type industry standard die sets, as well as “U” type industry standard dies with the use of the PU-15 die adapter.
- Open “C” head design allows user to place compression head over the connector without having to close a latch before starting a compression cycle.
- Head rotates 180° for optimum maneuverability in tight work spaces.
- 5 Yr. Tool/3 Yr. Battery & Charger Warranty
Product Specifications:
| Crimp Force: | 15 Ton |
| Weight(with battery): | 20.7 lbs (9.4 kg) |
| Dimensions (H X L X W): | 22.3" x 6.0" x 4.0" (566 x 153 x 103 mm) |
| Connector Range: | |
| Aluminum: | #8 to 1250 MCM |
| Copper: | #8 to 1500 MCM |
| H-Tap: | Up to 750/750 |
| Crimping Estimates(5.0Ah battery): | |
| 750 MCM Cu: | 95 Cycles/Charge |
