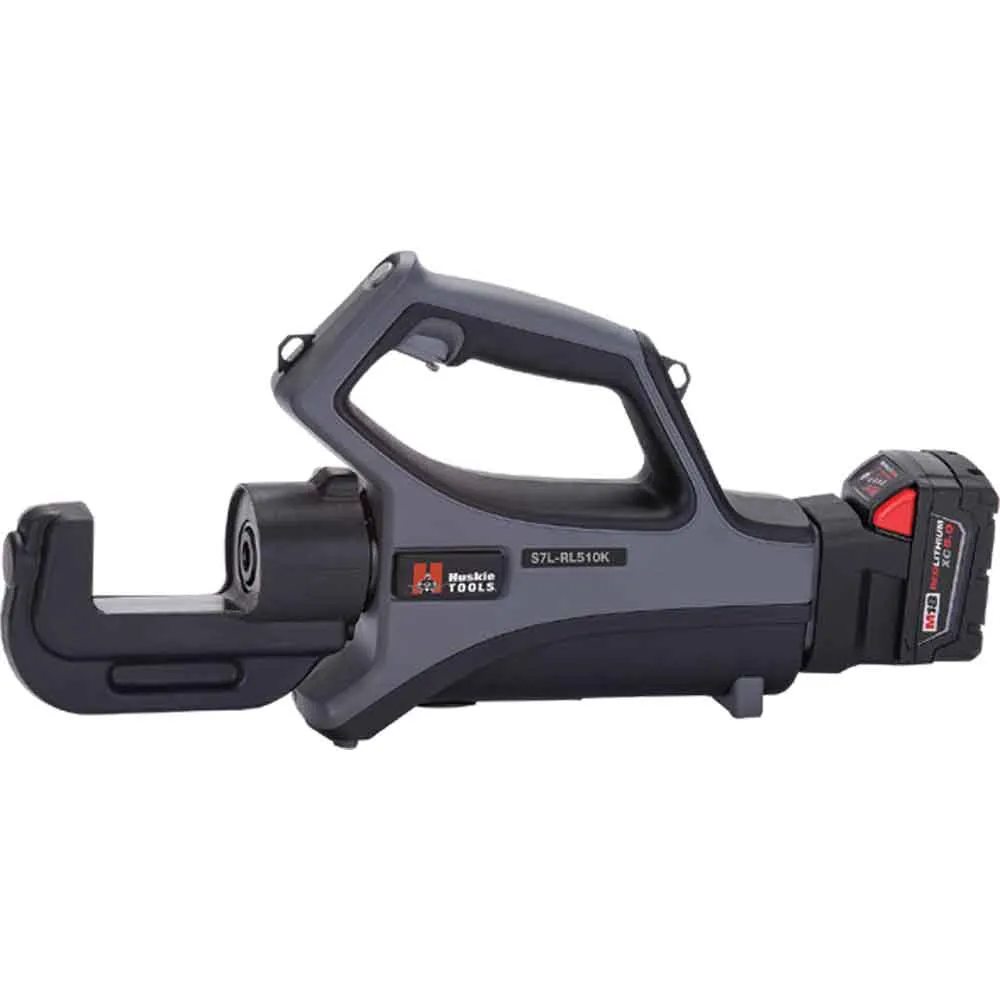

Kit Includes: 12 Ton Compression Tool with Kearney Head, (2) MILWAUKEE REDLITHIUM™ 5.0Ah, A/C or D/C Charger. Tool Bag.
Tool Only option includes: 1x Compression Tool & Tool Bag. (excludes battery / charger).
Product usually ships in 7-14 days.
Key Features:
- Accepts all WH-2, WH-3 and PH-2 Kearney style die sets, as well as “U” type industry standard dies with use of UDK-1 die adapter.
- Protective rubber boot on tool head helps protect against accidental contact with energized circuits.
- Open “C” head design allows easy placement and removal of connector from tool.
- Improved hydraulics deliver up to 2x faster compression speeds compared to previous generation tools.
- 270˚ rotating head for ease-of-use and tool maneuverability.
- Auto-retract ram increases productivity and provides faster tool reset after completed cycle.
- Ram retract can also be stopped mid-cycle for faster repeat operation.
- Improved weather-resistant case design protects tool against rain & debris.
- Handle-forward design provides improved ergonomics and tool balance.
- Dual LED lights illuminate workspace in dark conditions.
- Integral trigger-lock helps prevent inadvertent tool actuation during transport and storage.
- 5 Yr. Tool/3 Yr. Battery & Charger Warranty.
Product Specifications:
| Crimp Force: | 12 Ton |
| Weight (with battery): | 17.3 lbs (7.8 kg) |
| Dimensions (H X L X W): | 10" x 21" x 3.5" (254 x 533 x 88 mm) |
| Jaw Opening: | 1.5" / 38 mm |
| Connector Range: | |
| Lugs: | Up to 1033 ACSR |
| Splices: | Up to 477 ACSR |
| Crimping Estimates (5.0Ah battery): | |
| 500 MCM CU / 750 MCM AU: | 150 Cycles/Charge |
