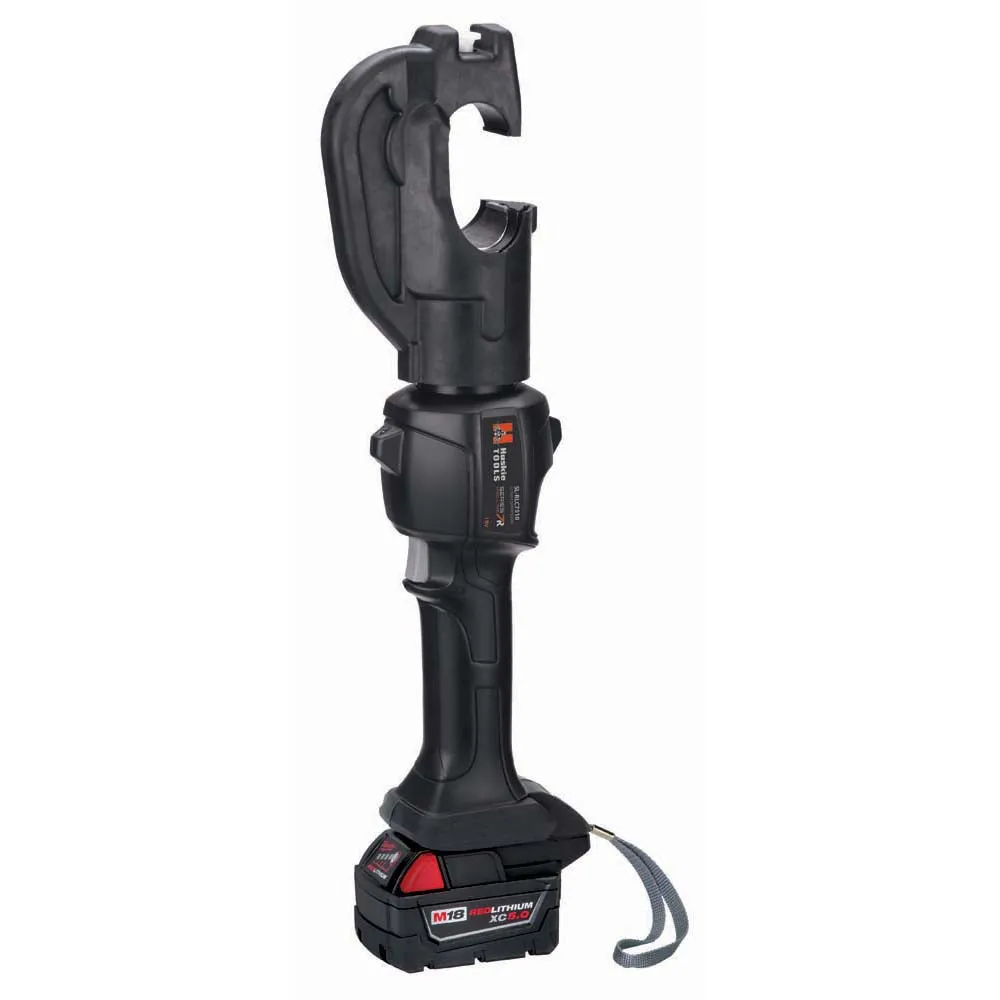

Kit Includes: 12 Ton Compression Tool, (1) MILWAUKEE REDLITHIUM™ 5.0Ah, 120V A/C or 12V D/C Charger, Tool Bag.
Tool Only option includes: 1x Compression Tool & Tool Bag. (excludes battery / charger).
Product usually ships in 7-14 days.
Key Features:
- Protective rubber boot on “C” head helps prevent accidental contact with energized circuits.
- Head rotates 180° for optimum maneuverability in tight work spaces.
- Inline tool design for easy use in underground applications.
- Accepts all U type industry standard die sets.
- 5 Yr. Tool/3 Yr. Battery & Charger Warranty
Product Specifications:
| Crimp Force: | 12 Ton |
| Weight(with battery): | 15.2 lbs (6.9 kg) |
| Dimensions (H X L X W): | 19.7" x 6.4" x 4.0" (510 x 162 x 103 mm) |
| Jaw Opening: | 1.65" |
| Connector Range: | |
| Lugs & Splices: | 750 MCM Al/Cu |
| Crimping Estimates(5.0Ah battery): | |
| 750 MCM Cu: | 135 Cycles/Charge |
| 500 MCM Cu: | 140 Cycles/Charge |
