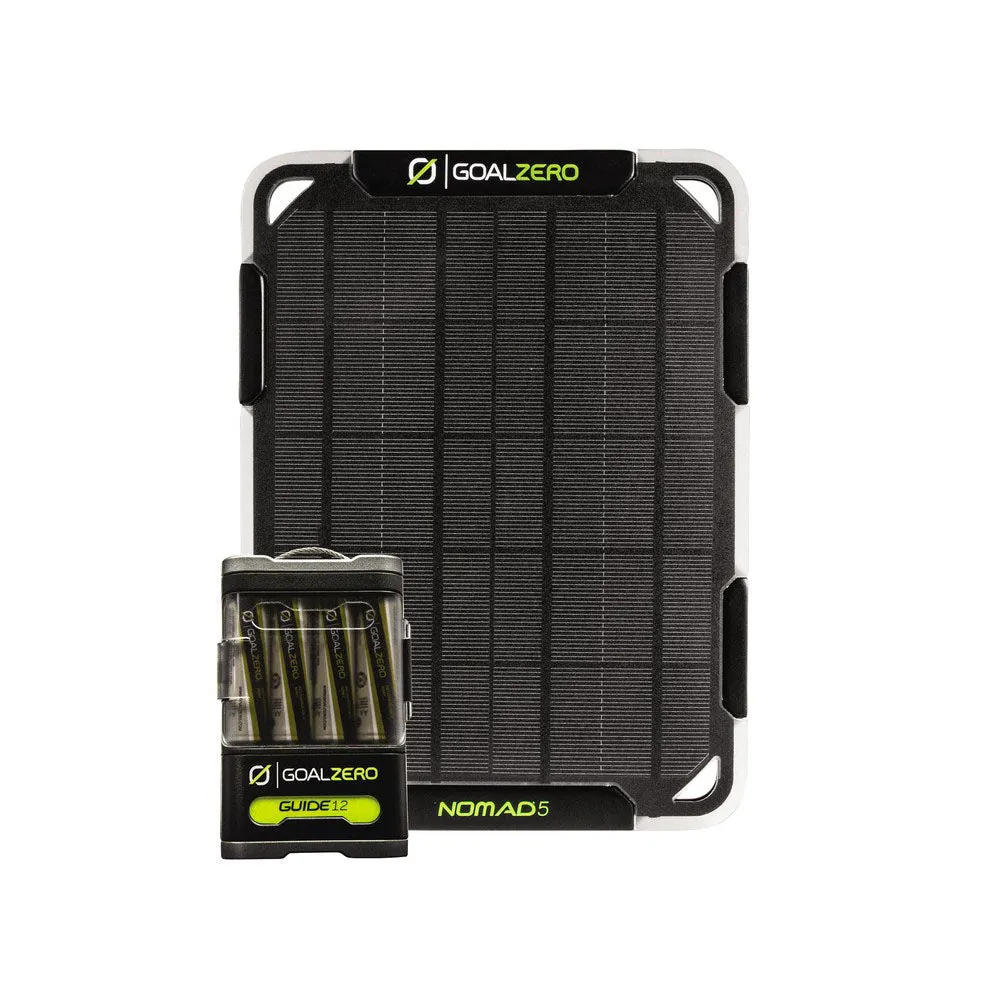

A lightweight solution for on-the-go power from the sun, this kit charges AA/AAA batteries efficiently. The rechargeable pack can also be used to power your phone, GPS, or boost your tablet in a pinch.

box1

GUIDE 12 HIGHLIGHTS

• 2,500mAh Battery Pack
  Portable, rechargeable battery pack for power hungry gear. Includes a USB output for charging phones and boosting tablets.
• Removable, Rechargeable Batteries
  Use AAs for headlamps, flashlight, and remotes. Also works with other rechargeable NiMH batteries and includes AAA adapter.
• Light It Up
  Includes a built-in flashlight, handy for digging in any purse or backpack, and lighting up a hallway in a pinch.

WHAT IT CHARGES

The Guide 12 is perfect for all your smaller USB or AA/AAA powered gear:

• Smartphone up to 1 recharge
• POV Camera 2.5 Recharges
• Headlamp 2.5 Recharges
• Tablet 25% Boost

NOMAD 5 HIGHLIGHTS

• 5 Watt panel gives you the solar collecting capability needed to charge your phone anywhere the sun shines.
• Built-in kickstand clicks into place at multiple angles, so you can easily position your panel for optimal solar collection.
• Rugged and durable, built to last as long as your adventures do.

tech

CHARGE TIMES

• GOAL ZERO Nomad 5: 4-8 hrs
• GOAL ZERO Nomad 10: 4 hrs
• USB source: 4 hrs

GENERAL

• Product SKU: 44260
• Nomad 5
• Weight: 12.7 oz (360 g)
• Dimensions: 9.5 x 7 x 1.1 in (24 x 17.8 x 2.8 cm)
• Max Leg Angle: 180 degrees
• Warranty: 12 months
• Guide 12
• Chainable: No
• Weight (w/batteries): 6.4 oz (181 g)
• Dimensions: 2.5 x 4 x 0.75 in (6.4 x 10.2 x 1.9 cm)
• Operating Useage Temp: 32-104 F (0-40 C)
• Certs: CE, FCC, ROHS
• Warranty: 2 Years

PORTS

• Nomad 5 USB Port: 5V, up to 1A (5W max)
• Guide 12 USB-A port (output): 5V, up to 2.0A (10W max), regulated
• Guide 12 USB-C port (input): 5V, up to 1A (5W max)

BATTERY DETAILS

• Cell chemistry: NiMH
• Battery Pack capacity: 12.0Wh (4.8V, 2500mAh)
• Single Cell Equivalent Capacity: 10,000mAh at 1.2V
• Lifecycles: hundreds of cycles
• Shelf-life: Keep plugged in, or charge every 3-6 months
• Fuses: none
• Management system: Charging and low-battery protection built-in

SOLAR

• Rated Power: 5W
• Open Circuit Voltage Voc: 6V
• Cell Type: Monocrystalline

LIGHT

• LED (output): 100mW, white LED
