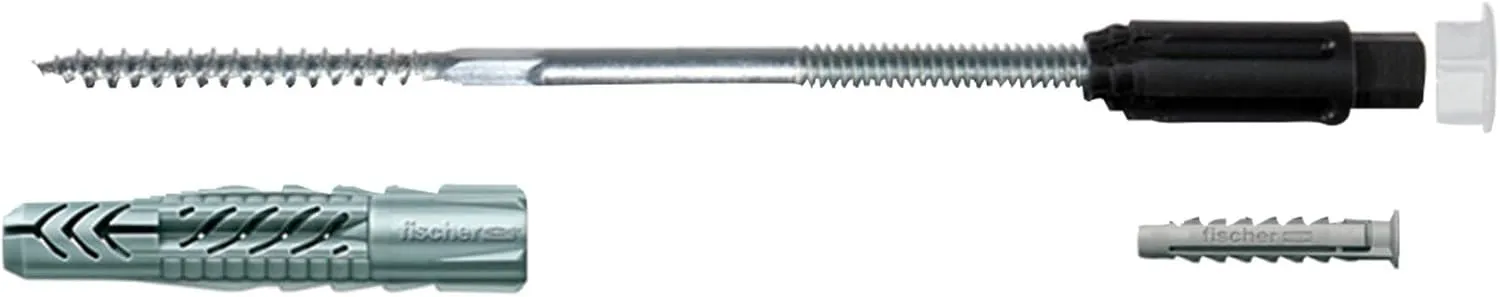

Thermax 10/120 M8 Spacer Mounting System

Self-tapping, fibreglass-reinforced cone mills directly through the plaster during assembly into the
Insulation The anti-cold cone reliably interrupts the heat bridge.

Easy, fast, professional installation without special tools, no nut/lock nut or
Spacer sleeve required. Safety thanks to anchoring in the ground. Heavy loads.
Hanger bolt can be screwed directly into wood after pre-drilling.
Small dimensions in the cover cap.

Multiple connection options.
- With SX 5: 4.5-5.5 mm chipboard screws.
- 6.0 mm chipboard screws.
- 6.3 mm tapping screws.
- M6.
- Usable lengths of 45 - 180 mm.
- Thermal separation.
- Adjustable.

Technical details:

Drill nominal diameter: 12 mm.
Hole depth: 180 mm.
Usable length: 100-120 mm.
Anchor depth: 70 mm.
Cover caps: 22 mm.
Spanner width: 13 mm.
