- SOLID FIXING TO OUTDOOR WALLS The self-tapping thermal spacer module ensures reliable installation of light to medium weight objects, such as mailboxes and lights, in soft and low-load insulation materials without damaging thermal insulation

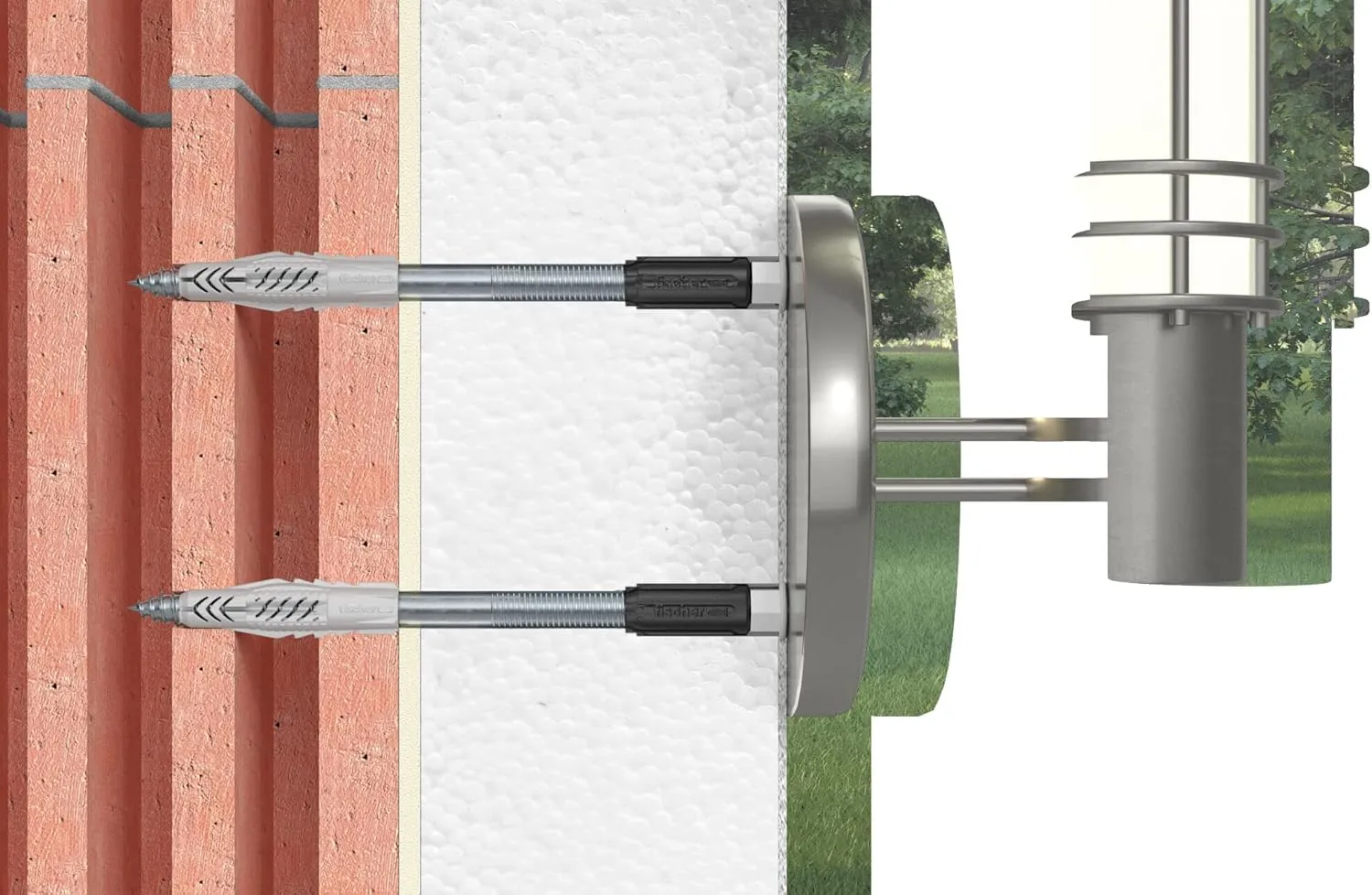

- Installation without special tools: the TherMax consists of a hanger bolt with glass-fibre reinforced cone, which mills itself through the plaster into the insulation material, while the universal dowel UX securely anchored in the building material and the anti-cold cone interrupts the heat bridge

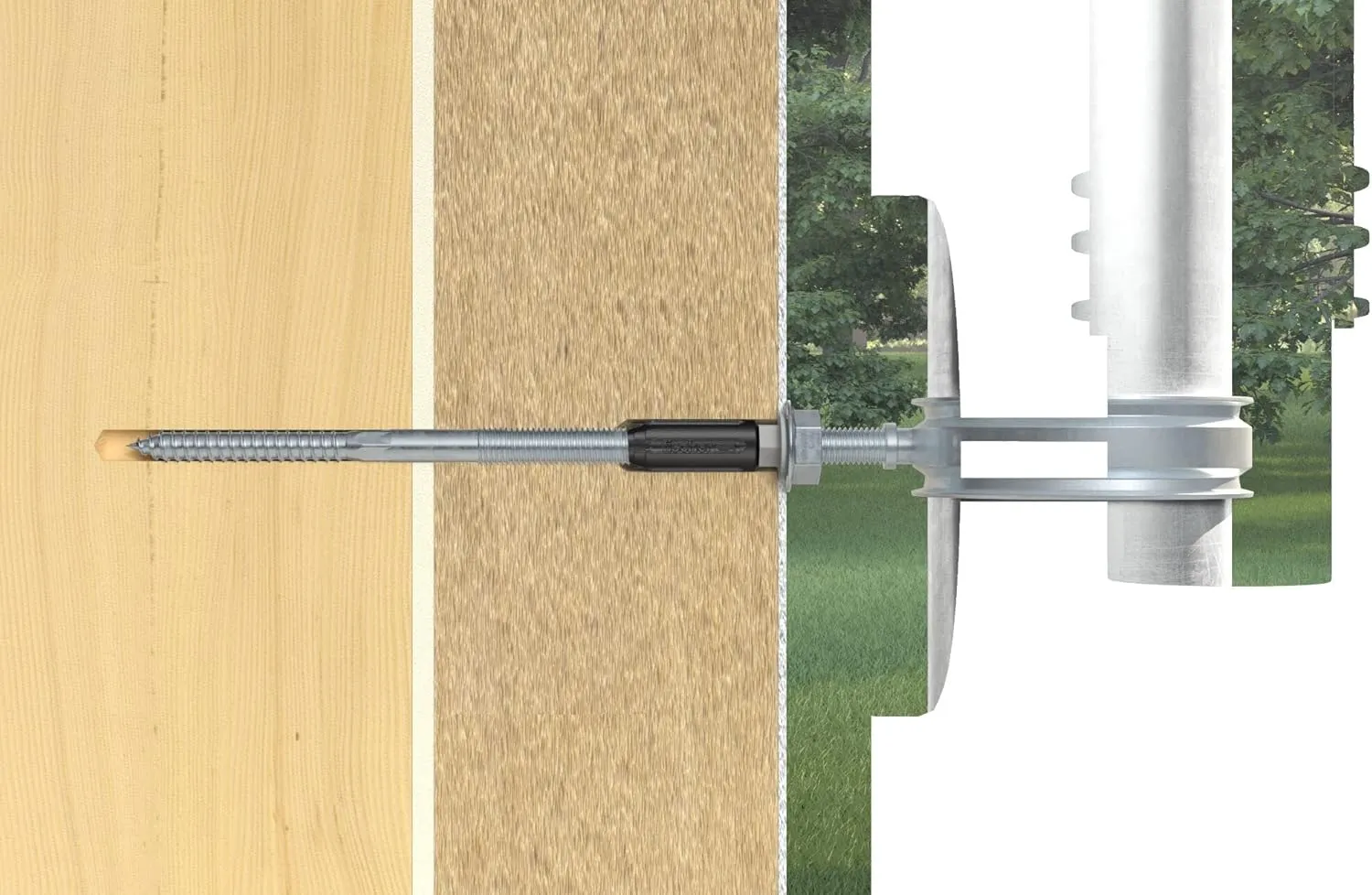

- For all building materials: the mounting system is suitable for thermally separated and secure attachment in all building materials, such as concrete, perforated brick, hollow block made of lightweight concrete and aerated concrete – without the universal dowel UX, direct mounting in wood is also possible
- Areas of application: With the TherMax 10, light to medium weight objects, such as motion detectors, lightning rods, rain downpipes, etc. on facades that have a thickness of the non-load-bearing layer of 180 - 200 mm

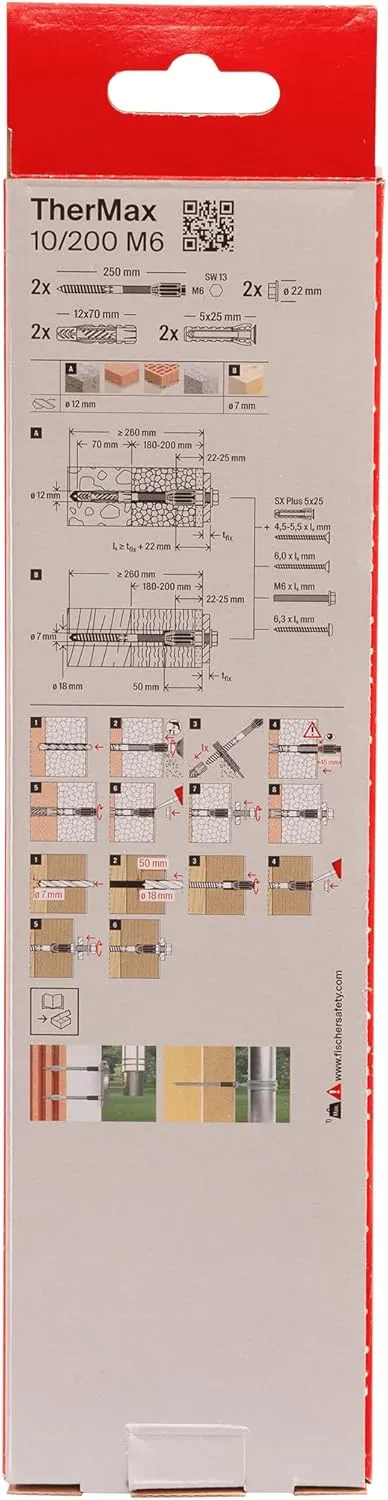

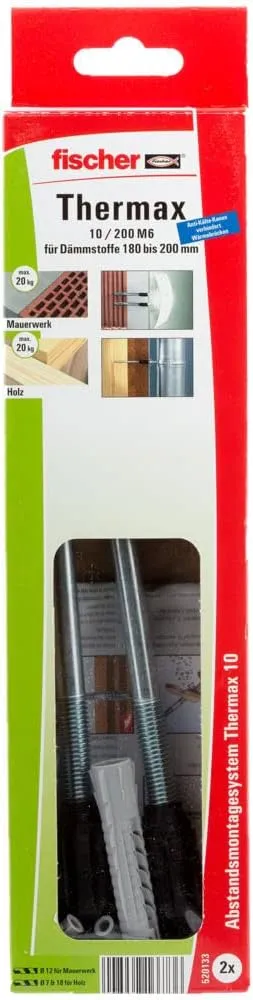

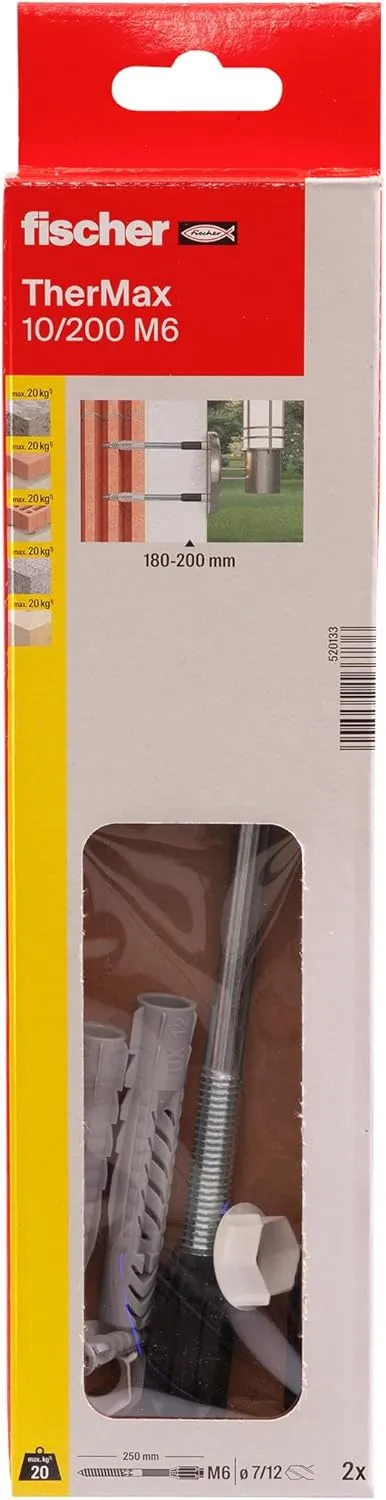

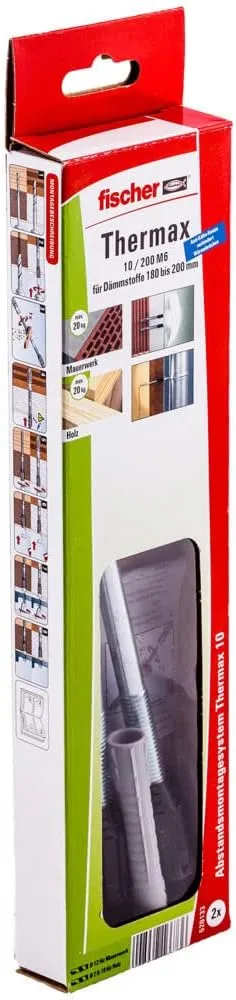

- Box contents: 2 x TherMax 10 / 200 M6 spacer mounting system, 2 x universal dowels UX 12 x 70, 2 x expansion dowels SX Plus 5 x 25, 2 x cover caps (item no. 520133), insulation dowels for medium loads of fischer

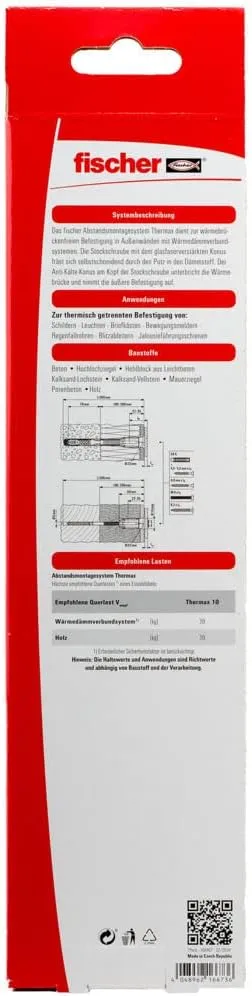

The fischer Thermax spacer mounting system is a solution for mounting in the outer wall without thermal bridges in the ETIC. The system consists of a special anchor rod made of galvanised steel with a glass fibre reinforced cone, threaded screws and anchor sleeves for fixing in perforated stone. In combination with the fischer high-performance mortar FIS AB and the fischer Superbond mortar FIS SB, the system is approved for numerous building materials. The anchor rod with the fibreglass-reinforced cone mills itself through the plaster into the insulation material. The anchor rod is anchored in the anchor sleeve with an injection mortar in the building material. The cone on the head of the anchor rod interrupts the heat bridge and accommodates the stainless steel threaded pin for external attachment. The Thermax attaches heavy loads such as awnings, air conditioners and satellite systems in concrete, aerated concrete and masonry made of perforated and solid stone. Product advantages: mounting of the attachment without pressure points and damage to the ETIC. Suitable for all building materials. No cold entry: the anti-cold cone interrupts the heat bridge. Cost-effective installation without special tools. External stainless steel lying parts stainless steel Anchor rod made of galvanised steel. Building authorised for non-cracked concrete, masonry bricks, solid lime brick, hollow blocks made of lightweight concrete, perforated bricks, sand-lime brick (no. Z-21.8-1837). Installation instructions for installation without special tools. For cement plaster with a drill diameter of 50 mm, pre-drill torque when anchoring 2. 0 NmInIncl. Sieve sleeves and milling blade (for mounting with durable plaster). Other usable lengths see approval. Small pack, contents 2 pieces. Box contents: 2 x anchor rods, 2 x anti-cold cones, 2 x A4 threaded screws, 2 x A4 U-washers, 2 x A4 nuts, 2 x anchor sleeves, bit, milling blade, extension hose for extrusion tip.
