- Fits Most SCTE Specified RG-6 Size Coaxial Cables
- DIRECTV Approved 3GHz Rated Connector
- True 360° Compression Design That Ensures Superior Electrical Performance with Easy-and-Quick Installation
- Superior Shielding Performance due to weatherproof Seal and 3GHz Rated Connector.
- Comes in a pack of 50 pcs.

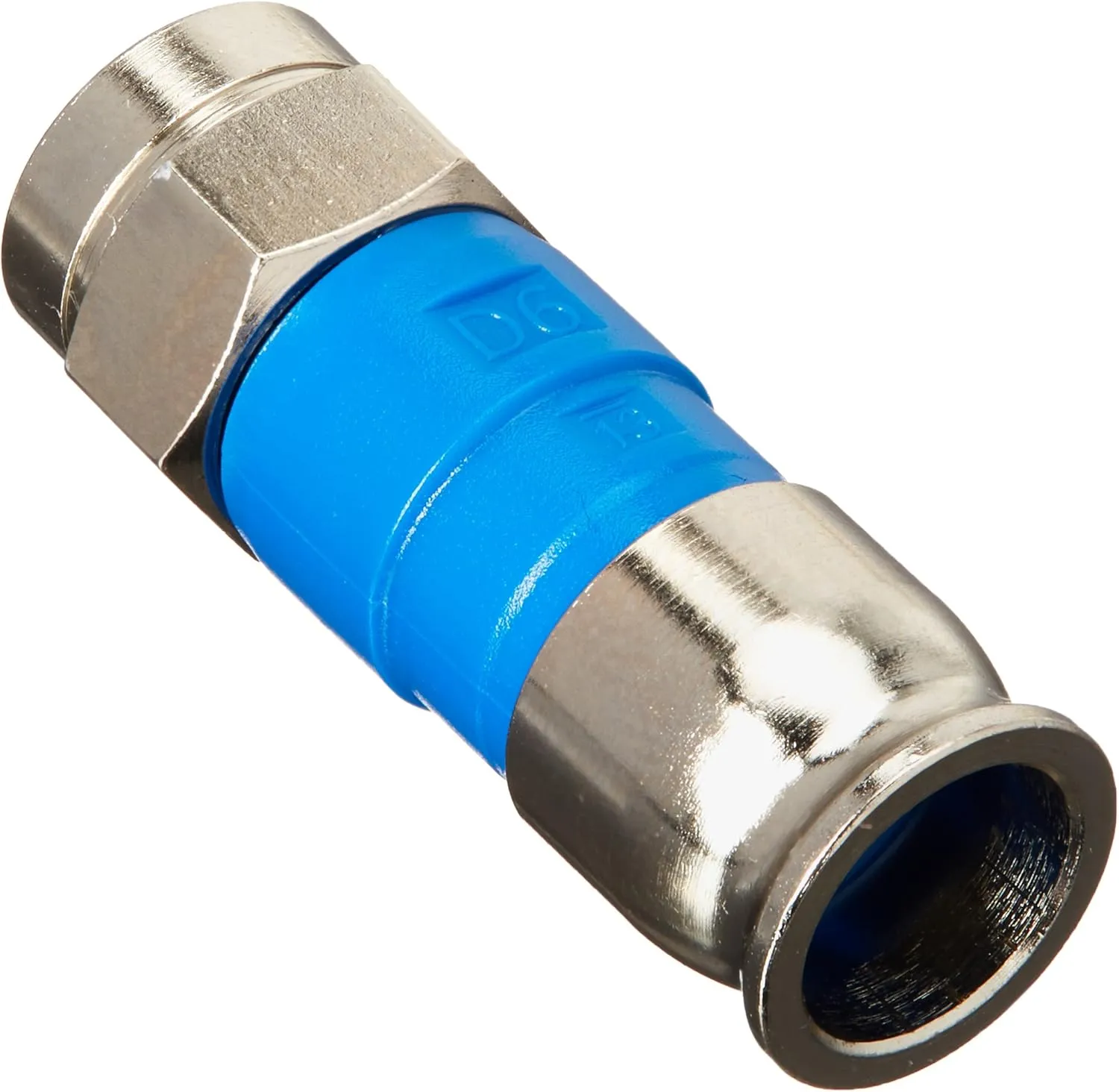

50 Count Bag of Belden SNSD6 Snap-N-Seal Ultimate Compression Connectors for RG6. F-Male Compression Connector designed to fit all SCTE specification Series 6 cables. The SNSD6 replaces the Belden SNS1P6U. Bandwidth: 0 MHz to 3 GHz. Impedance: 75 Ohms. Return Loss: Minimum -30 dB to 3 GHz. Insertion Loss: Less than .10 dB to 3 GHz. Operating Voltage: 90 V (at 60 Hz continuous AC). Operating Temperature: -40°F to 140°F ( -40°C to 60°C). Cable Retention: 45 lbs (20.41 kg) minimum. Meets or exceeds all SCTE Specifications.
